Information

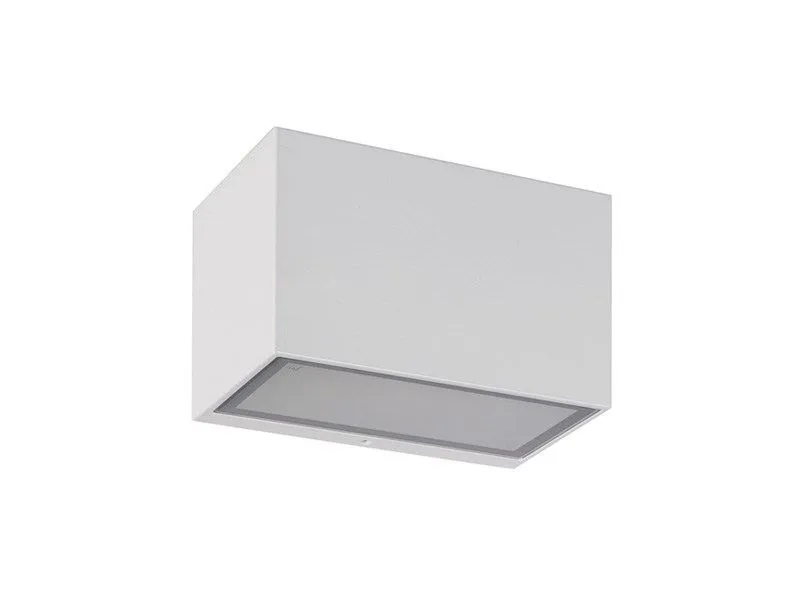

Wall mounted for outdoor applications
surface mounted (wall)
body in die-cast aluminium alloy EN AB 47100, screen in tempered glass
finishes: anthracite, white, cor-ten, grey
power LED matrix
10W, 16W - 230Vac
built in power supply unit
connection box with 0,30 m cable
delivered lumen output: 531 lm (3000K, 10W), 831 lm (3000K, 16W)
diffuse optics
LED colour: white - 2700K, 3000K, 4000K
ingress protection: IP65
impact resistance: IK07
operating temperature: -20°C+45°C
screen temperature: max 40°C (Ta 25°C)
Glow Wire Test: 960°
photobiological safety: risk group 1 in accordance with EN62471:2006
appliance class: I
weight 1,80 kg
dimensions 170x100x100 mm
accessories: spacer WD0300E / WD0300G / WD0300H / WD0300T
