Information

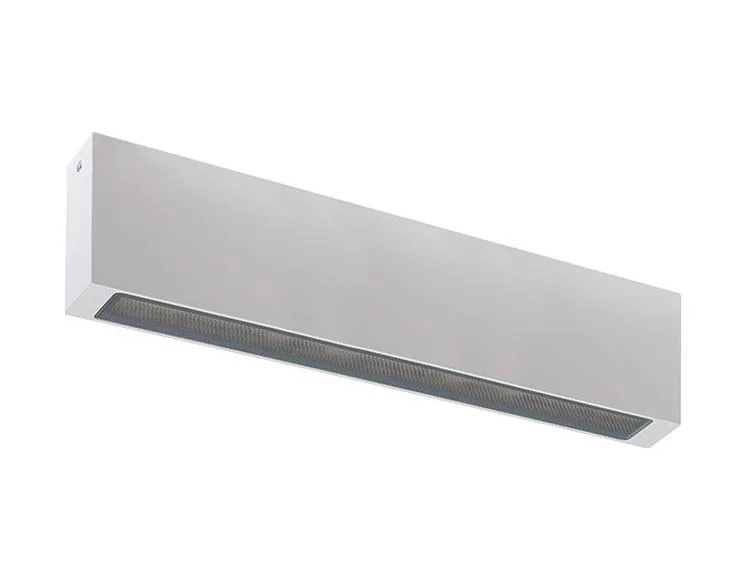

Ceiling mounted for outdoor applications
surface mounted (ceiling)
body in anticorodal aluminium alloy 6060, screen in microprismatic glass
finishes: anthracite, white, cor-ten, grey
54 mid power LEDs
19W - 230Vac
built in power supply unit
includes 1,5 m neoprene cable, H05RN-F 3x1,0 Ø7 mm
delivered lumen output: 1478 lm (3000K)
diffuse optics
LED colour: white - 2700K, 3000K, 4000K
ingress protection: IP65
impact resistance: IK08
operating temperature: -20°C+45°C
screen temperature: max 40°C (Ta 25°C)
Glow Wire Test: 960°
photobiological safety: risk group 1 in accordance with EN62471:2006
appliance class: I
weight 1,20 kg
dimensions 294x80x29 mm
accessories: spacer for 15° inclination WD0653E / WD0653F / WD0653H / WD0653T
