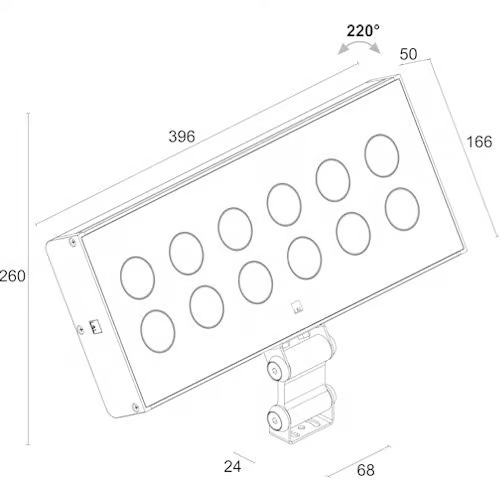

Overall dimensions
Information

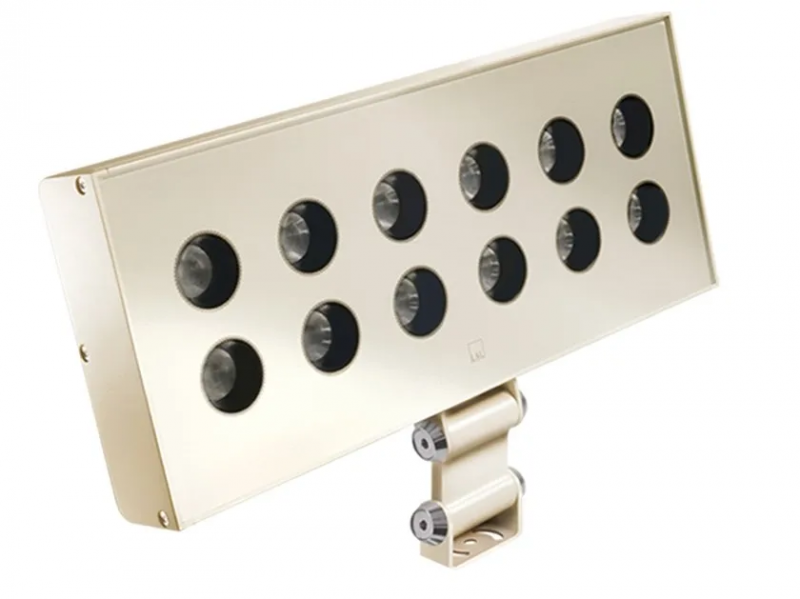

Duomo 4.0 is an indoor projector made of anticorodal aluminum with surface installation (ceiling, wall, floor). Body material: body and arm in Anticorodal aluminium, screen in serigraphed, tempered, extra-clear glass
Finishes: antique white, anthracite, white
Control system: DALI, ON/OFF
Ingress protection: IP54
Impact resistance: IK06
electrical wiring simplified by the ability to connect the electrical cables directly to the connector
available on request with adapter for Eurostandard track and in 1–10V or PUSH version, or with Bluetooth control
Protection systems: The PID (Protective Impedance Device)
Appliance class: class II.
Electrical characteristics
Power consumption: 56W
Power supply: 230Vac
Lumen output at source: 4886 lm (3000K, CRI 90), 5280 lm (3000K, CRI 80)
Delivered lumen output: 3964 lm (3000K, 30°, CRI 90), 4284 lm (3000K, 30°, CRI 80)
12 power LEDs High Intensity, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour: 2700K, 3000K, 4000K
Optics: 10°, 14°, 30°, 35°, 43°, 63°, 18°x44°, 44°x18°
CRI Colour Rendering Index: 80, >90
