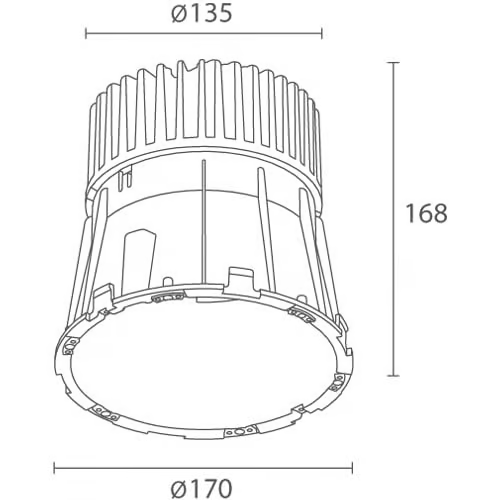

Overall dimensions
Information

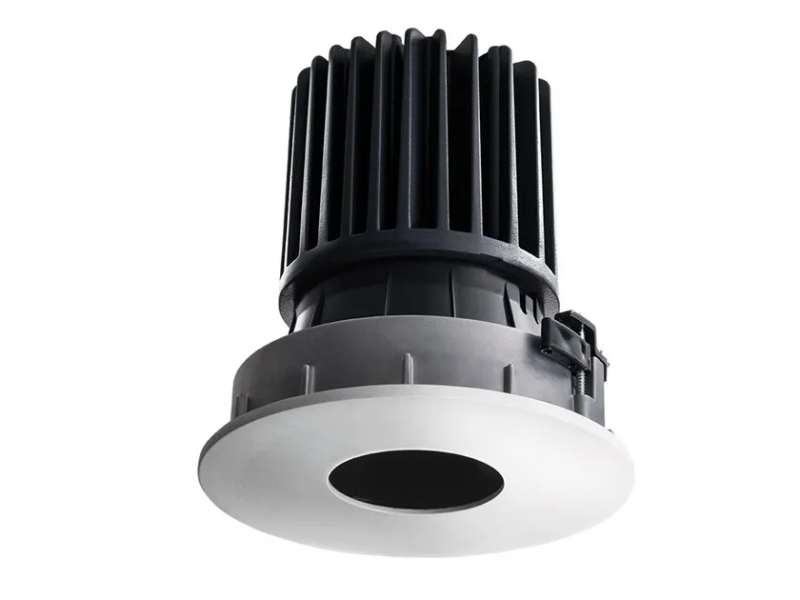

Combina D 4.0 is a recessed downlight for indoor applications
recessed (ceiling), Power consumption: max 29W
Power supply: max 800mA
Lumen output at source: 2492 lm (3000K, 800mA, CRI >97), 2829 lm (3000K, 800mA, CRI >90)
Delivered lumen output: 2170 lm (3000K, 800mA, 41°, CRI >97), 2225 lm (3000K, 800mA, 41°, CRI >90)
1 power LED High Intensity, 2-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour: 2700K, 3000K, 4000K
Optics: 20°, 29°, 38° (If you choose the deep cover, the optics change from 20° to 21°, from 29° to 30° and from 38° to 41°)
CRI Colour Rendering Index: >90, >97
Body material: body in die-cast aluminium and Bayblend, bezel and cover in die-cast aluminium
RAL finish on request
power supply unit not included
includes 2x0.30 m single-core PVC cables
Ingress protection: IP40, IP44 with filter
UGR <13 for versions with flat and shallow covers, UGR <19 for versions with deep cover
Appliance class: class III.
