Overall dimensions
Information

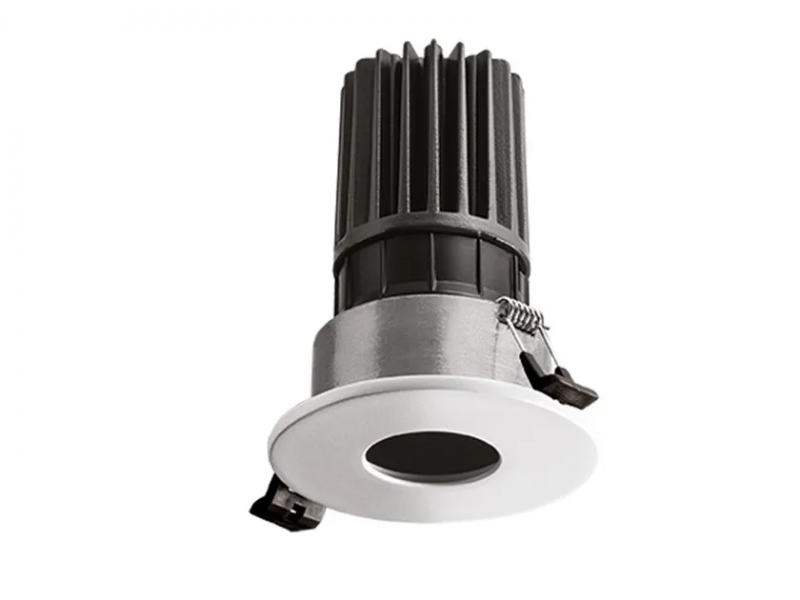

Combina D 1.0 is a recessed downlight for indoor applications
recessed (ceiling)
Power consumption: max 6W
Power supply: max 500Ma
Lumen output at source: 637 lm (3000K, 500mA)
Delivered lumen output: 293 lm (3000K, 500mA, 16°)
1 power LED High Intensity, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour: 2700K, 3000K, 4000K
Optics: 16°, 22°, 33° (If you choose the deep cover, the optics change from 22° to 23° and from 33° to 42°)
CRI Colour Rendering Index: >90
Body material: body in die-cast aluminium and Bayblend, bezel and cover in die-cast aluminium
RAL finish on request
power supply unit not included
includes 2x0.30 m single-core PVC cables
Ingress protection: IP40, IP44 with filter
UGR <13 for versions with flat and shallow covers, UGR <19 for versions with deep cover
Appliance class: class III.
