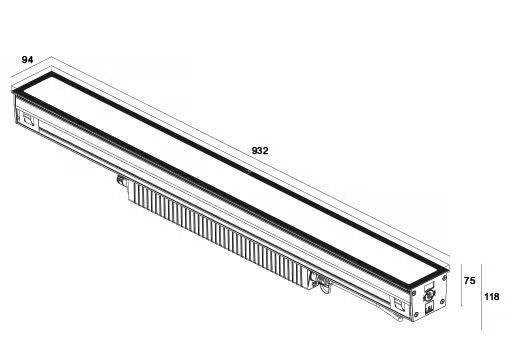

Overall dimensions
Information

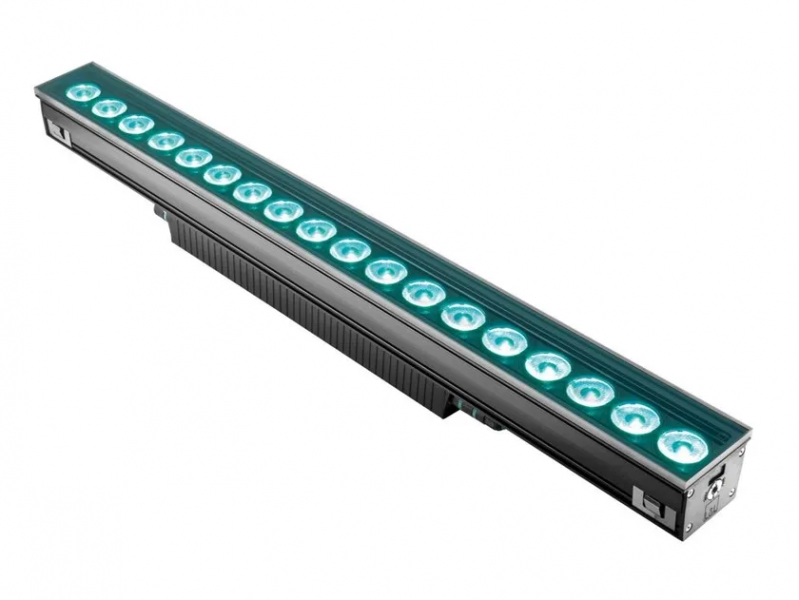

Colorado 5.1 is a recessed (floor) linear profile for outdoor applications, drive-over up to 1500 kg
material: body in black-anodized anticorodal aluminium screen in grey-serigraphed and transparent, tempered extra-clear glass
screen in grey-serigraphed, acid-etched, tempered extra-clear glass (diffuse version) caps in technopolymer
Finishes: black anodized aluminium finish obtained by electro-colouring to give the product better heat dissipation and the material corrosion resistance.
Electrical characteristics
Power consumption: 43W
Power supply: 230Vac
Lumen output at source: R: 1620 lm G: 2920 lm B: 684 lm W: 3582 lm (3000K)
Delivered lumen output: 3820 lm, R: 1278 lm G: 2304 lm B: 540 lm W: 2826 lm (3000K, 25°)
18 power LEDs multicolor High Intensity, 60 000h L80 B10 (Ta 25°C)
LED colour: RGBW
Optics: 15° tiltable ±20°, 25° tiltable ±20°, 37° tiltable ±20°, 13°x65° tiltable ±20°, diffuse tiltable ±20°
Ingress protection: IP65, IP67.
This family of drive-over LED fixtures with built-in power supply was developed as architectural lighting for facades of up to 20 metres tall on urban buildings such as hotels and historic and public buildings. It features efficient, high performance levels, thanks to a luminous flux of over 5700 lm per square metre, and a variety of lengths (60 / 100 / 120 cm), so that it can best satisfy architects’ design requirements. There are multiple different looks, too: Colorado can be recessed flush or with a rebated frame. And, for the version that is surface mounted using brackets with two pivot points, there is a further accessory of adjustable brackets that allow the fixture to be spaced up to 270 mm from the installation surface. This enables the light output to reach beyond any protruding architectural elements, such as cornices, corbels or cordons, that could generate unwanted shadows.
