Overall dimensions
Information

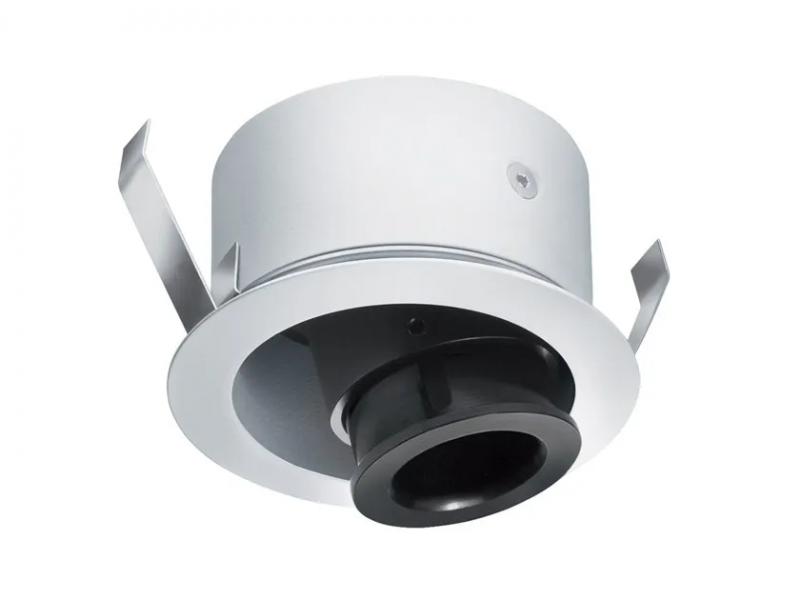

Recessed for indoor applications
recessed (ceilings, and false ceilings and niches in plasterboard)
Power: 2,5W
Power supply: 24Vdc
Lumen output at source: 157 lm (3000K)
Delivered lumen output: 50 lm (3000K, 40°)
1 power LED, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C)
LED colour: 2700K, 3000K, 4000K
Optics: optical range 8°÷40° tiltable ±20°
CRI: 90
Body material: radiator in black anodized aluminium acting as a cooling element. Body and recessing frame in aluminium, made entirely on a CNC lathe. Springs in C67 annealed spring steel
Finishes: body and frame electro-coloured black, body and frame painted white (RAL 9003 matt)
RAL finish on request
power supply unit not included
includes 1.5 m PVC cable FROR 2x0.35/0.35 Ø3.5 m
Ingress protection: IP40
The light beam can be precisely directed thanks to the great adjustability of the optical unit: rotation up to 360° around the vertical axis and 20° along the horizontal axis
Protection systems: EPS
Appliance class: III
Weight: 70 g
Dimensions: Ø58x36 mm
