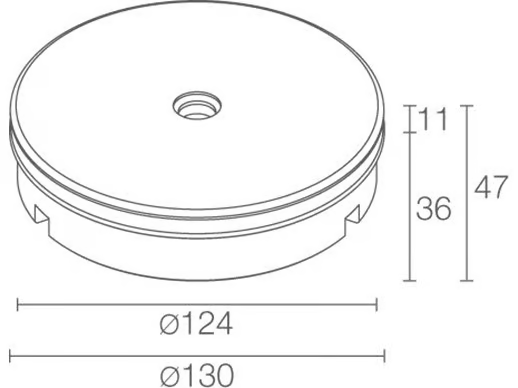

Overall dimensions

more on brand

L&l luce&light
Brand page
Lira 1.0
Berica 1.0
Berica 1.2
Berica 2.2
Versa 1.0
Berica 3.0
Colorado 9.2
Colorado 2.2

Information

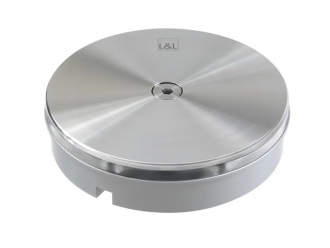

Recessed for outdoor applications recessed (floor) 4W 24Vdc Lumen output at source: 192 lm (3000K) Delivered lumen output: 164 lm (3000K) 48 side-emitting LEDs LED colour: 2700K, 3000K, 4000K, blue Optics: radial body in anodized aluminium, trim in AISI 316L stainless steel, screen in PMMA power supply unit not included includes 1,5 m neoprene cable, H05RN-F 2x0,75/0,75 Ø6,3 mm Ingress protection: IP67 Impact resistance: IK10 anti-vandal kit available on request Protection systems: IPS Operating temperature: -20°C — +45°C Maximum device temperature: 45°C (Ta 25°C) Glow wire test: 960° Photobiological safety: risk group 1 according to EN6 2471:2006 Appliance class: III Weight: 1210 g Dimensions: Ø130x47 mm Volume of thermal heatsink: Ø130x50 mm Accessories: WC0501 Outer casing, WC0601 Outer casing, WC0701 Outer casing, WF6105 Neoprene cable - 5 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF6110 Neoprene cable - 10 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF6115 Neoprene cable - 15 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF6120 Neoprene cable - 20 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS Energy efficiency class: A / A+ / A++

PDF - files

Catalogues
