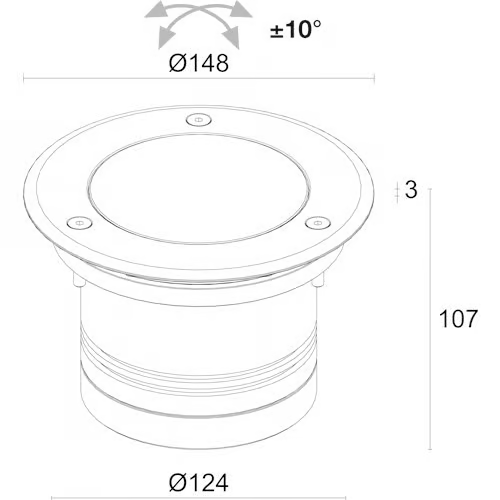

Overall dimensions
Information

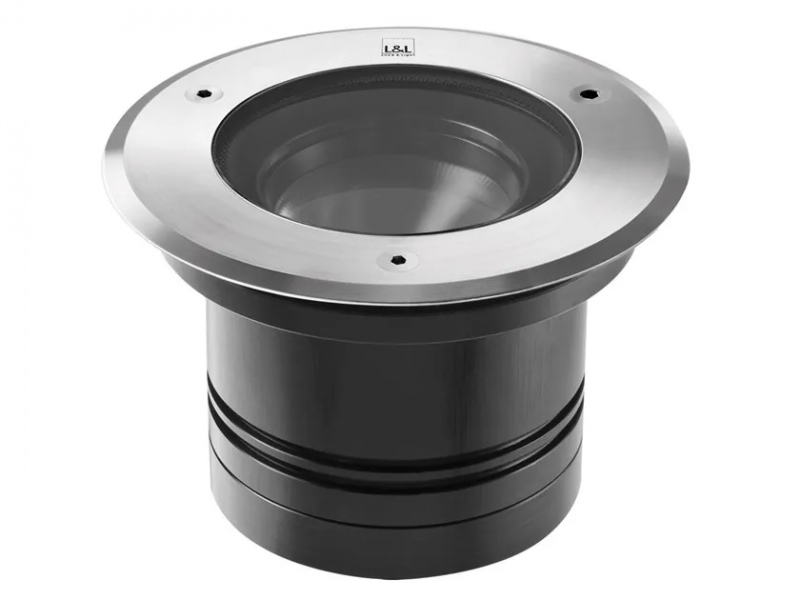

Bright 5.G is a recessed for outdoor applications
drive-over up to 4000 kg
recessed (ceiling, wall, floor)
Power: 10W, 16W
Power supply: 24Vdc
Lumen output at source: 868 lm (3000K, 10W, CRI 90), 1564 lm (3000K, 16W, CRI 80), 1313 lm (3000K, 16W, CRI 90), 1033 lm (3000K, 10W, CRI 80)
Delivered lumen output: 816 lm (3000K, 10W, 55°, CRI 80), 686 lm (3000K, 10W, 55°, CRI 90), 1235 lm (3000K, 16W, 55°, CRI 80), 1037 lm (3000K, 16W, 55°, CRI 90)
1 high power density COB LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour: 2700K, 3000K, 4000K
Optics: 12° tiltable ±10°, 31° tiltable ±10°, 38° tiltable ±10°, 55° tiltable ±10°
CRI: 80, 90
body in anodized aluminium, trim in AISI 316L stainless steel, screen in tempered, serigraphed-grey and transparent extra-clear glass
Ingress protection: IP65, IP67
Impact resistance: IK09
Protection systems: IPS
Appliance class: III
Weight: 1650 g
Dimensions: Ø148x107 mm
