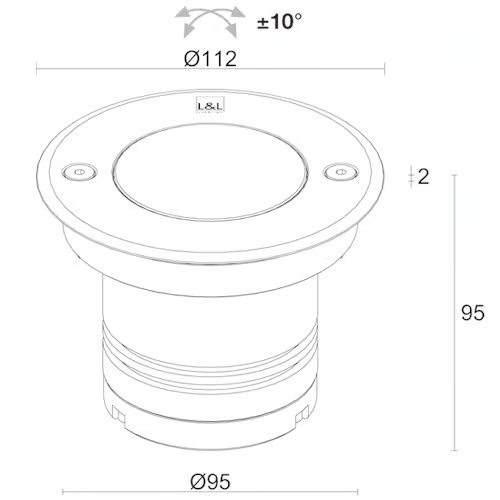

Overall dimensions
Information

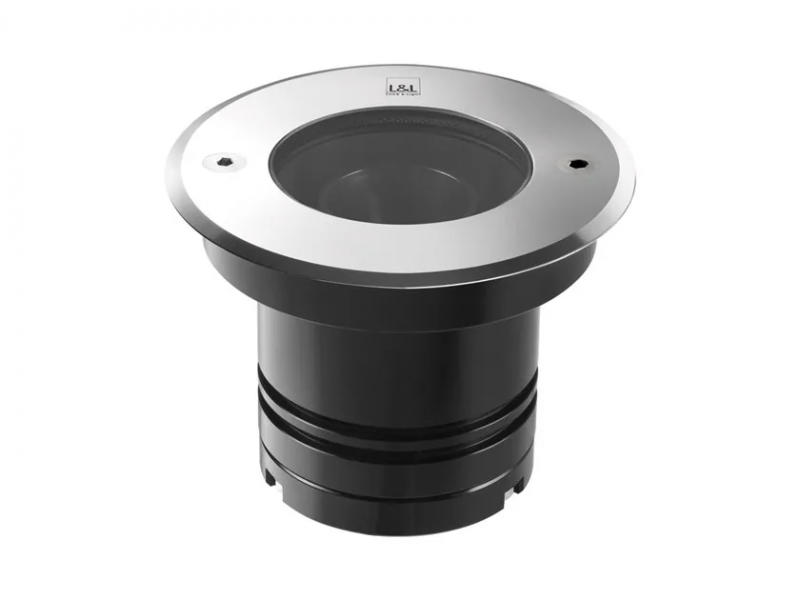

Bright 3.G is a recessed for outdoor applications
drive-over up to 5000 kg
recessed (ceiling, wall, floor)
Power: 9W, 5W
Power supply: 24Vdc
Lumen output at source: 792 lm (3000K, 9W, CRI 80), 639 lm (3000K, 9W, CRI 90), 440 lm (3000K, 5W, CRI 80), 355 lm (3000K, 5W, CRI 90)
Delivered lumen output: 508 lm (3000K, 9W, 35°, CRI 80), 410 lm (3000K, 9W, 35°, CRI 90), 282 lm (3000K, 5W, 35°, CRI 80), 228 lm (3000K, 5W, 35°, CRI 90)
1 power LED High Intensity, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour: 2700K, 3000K, 4000K
Optics: 12° tiltable ±10°, 35° tiltable ±10°
20° tiltable ±10°, 57° tiltable ±10°
CRI: 80, 90
body in anodized aluminium, trim in AISI 316L stainless steel, screen in tempered, serigraphed-grey and transparent extra-clear glass
Ingress protection: IP65, IP67
Impact resistance: IK10
Protection systems: IPS
Appliance class: III.
