Information

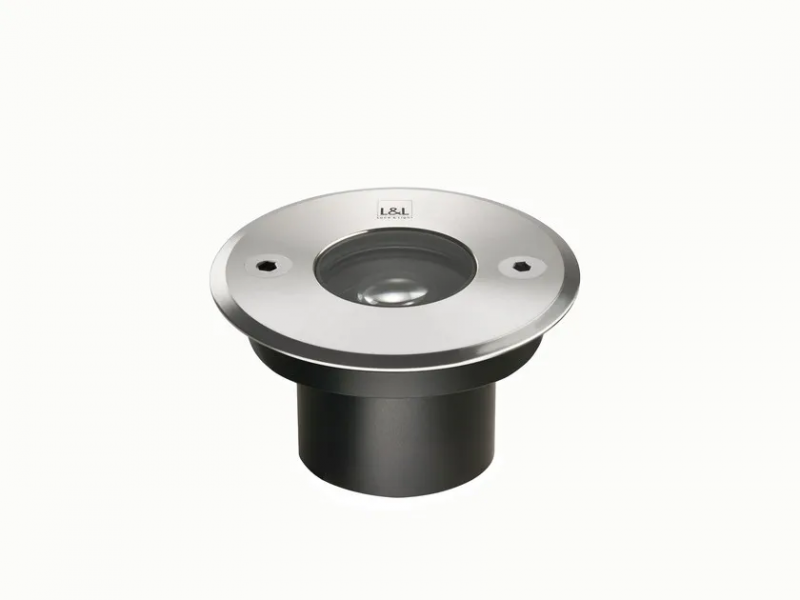

Recessed for outdoor applications (not suitable for underwater applications)
drive-over up to 2000 kg
recessed (ceiling, wall, floor)
body in anodized aluminium alloy EN AW 6082, trim in AISI 316L stainless steel or aluminium (only Bright 2. 8), screen in extra-clear transparent tempered glass
finishes: micro blasted stainless steel, grey
1 power LED
3W - 24Vdc
includes 1,5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm
parallel connection
total delivered lumens: 133 lm (3000K)
adjustable optics ±15°: 8°, 20°, 36° sharp, 41°, 68° sharp, 10°x44°
LED colour: white - 2700K, 3000K, 4000K
blue
ingress protection: IP68, IP69K
impact resistance: IK10
equipped with IPS
operating temperature: -20°C +45°C
screen temperature: max 40°C (Ta 25°C)
Glow Wire Test: 960°
photobiological safety: risk group 1 in accordance with EN62471:2006
appliance class: III
weight 0,40 kg (aluminium trim) 0,50 kg (stainless steel trim)
dimensions: Ø85x50mm (Bright 2. 8), 85x85x50mm (Bright 2. 9)
cut-out size Ø70 mm
overall volume Ø180x120 mm
dimming using a 24Vdc dimmer
accessories: outer casing WC0100, outer casing WC0103, fixing spring WG0100, anti-glare screen, half transparent and half serigraphed black WE0400S.
