Information

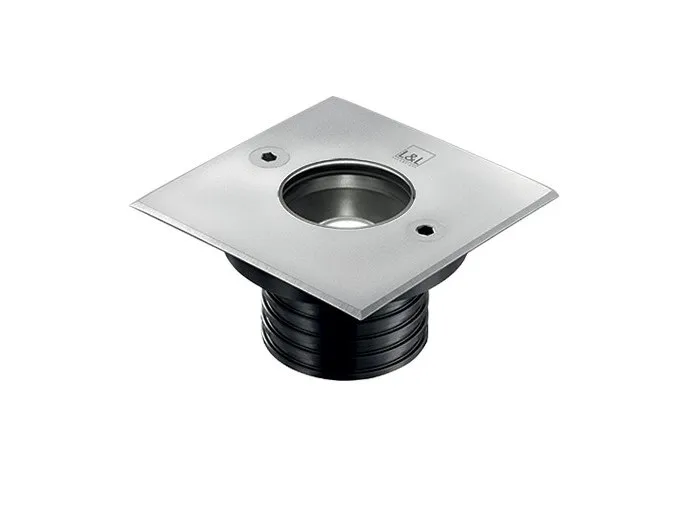

Recessed for outdoor applications (not suitable for immersion in swimming pools or fountains)
drive-over up to 2000 kg
recessed (ceiling, wall, ground)
body in AISI 316L stainless steel or black anodized aluminium, trim in AISI 316L stainless steel, screen in tempered, transparent extra-clear glass, screen in extra-clear tempered, sandblasted glass (diffuse optics)
finish: micro blasted
1 power LED High Intensity
RGB: 3 power LEDs
5W, 7W - 24Vdc
RGB: max 5W - max 500mA
includes 1,5 m neoprene cable, H05RN-F 2x0,75/0,75 Ø6,3 mm
RGB: includes 1,5 m FEP+PCP cable (equivalent to H05RN-F cable) 6x0,50/0,50 Ø6,3 mm
delivered lumen output: 352 lm (3000K, 34°, 5W, CRI 80), 284 lm (3000K, 34°, 5W, CRI 90), 463 lm (3000K, 34°, 7W, CRI 80), 374 lm (3000K, 34°, 7W, CRI 90), RGB: 191 lm (R: 70 lm, G: 90 lm, B: 31 lm)
optics: asymmetrical 8°, 8°, 11°, 17°, 21° sharp, 34°, 45°, 47°, 61° sharp, 68°, 13°x52°, diffuse
RGB: 20°, 34°, 45°, 21°x42°
LED colour: white - 2700K, 3000K, 4000K
RGB
ingress protection: IP68, IP69K
impact resistance: IK10
equipped with IPS and PID
operating temperature: -20°C+45°C
screen temperature: max 40°C (Ta 25°C)
Glow Wire Test: 960°
photobiological safety: risk group 1 in accordance with EN62471:2006
appliance class: III
weight 0,44 kg
body dimensions 85x85x63 mm
cut-out size Ø70 mm
overall volume Ø180x120 mm
dimming using a dimmable power supply unit
accessories: outer casing WC0100, outer casing WC0103, fixing springs WG0100, honeycomb louvre WH0201, semi-diffusing screen, half transparent and half frosted WE0400A, anti-glare screen, half transparent and half serigraphed black WE0400S
