Information

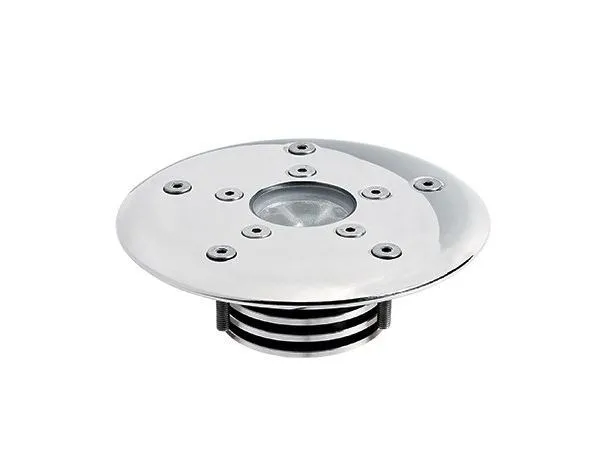

Recessed uplight for outdoor and underwater applications
recessed (wall, ground), max depth 10 m
body and trim in AISI 316L stainless steel, screen in tempered glass
3 power LEDs
max 6W (3 power LEDs x 2W) - max 500mA
includes 5 m neoprene cable, H05RN-F 2x0,75/0,75 Ø6,3 mm
RGB: includes 5 m FEP+PCP cable (equivalent to H05RN-F cable) 6x0,50/0,50 Ø6,3 mm
series connection
total delivered lumens: 314 lm (3000K, 500mA)
optics: 10°, 24°, 38°
LED colour: white - 2700K, 3000K, 4000K, 5000K
blue
RGB
ingress protection: IP68
impact resistance: IK10
equipped with IPS
operating temperature: -10°C +45°C
screen temperature: max 40°C (Ta 25°C)
Glow Wire Test: 960°
photobiological safety: risk group 1 in accordance with EN62471:2006
appliance class: III
weight 1,80 kg
dimensions Ø133x65 mm
dimming using a dimmable power supply unit
accessories: outer casing WC5002, PVC coated accessory WC5102
