Information

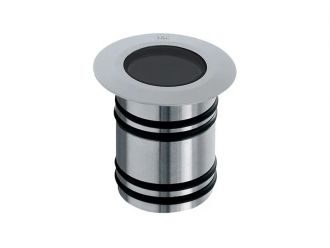

Recessed uplight for outdoor and underwater applications
recessed (wall, ground), max depth 10 m
body and trim in AISI 316L stainless steel, screen in tempered glass
1 power LED
max 2W - max 500mA
includes 5 m neoprene cable H05RN-F 2x0,35/0,75 Ø6,3 mm
series connection
total delivered lumens: 88 lm (3000K, 500mA)
optics: 10°, 20°, 40°, diffuse
LED colour: white - 2700K, 3000K, 4000K, 5000K
blue
ingress protection: IP68
impact resistance: IK10
equipped with IPS
operating temperature: -10°C +45°C
screen temperature: max 40°C (Ta 25°C)
Glow Wire Test: 960°
photobiological safety: risk group 1 in accordance with EN62471:2006
appliance class: III
weight 0,35 kg
dimensions Ø35x52 mm
cut-out size 30 mm
overall volume Ø35x55 mm
dimming using a dimmable power supply unit
accessories: outer casing WC5003
