Information

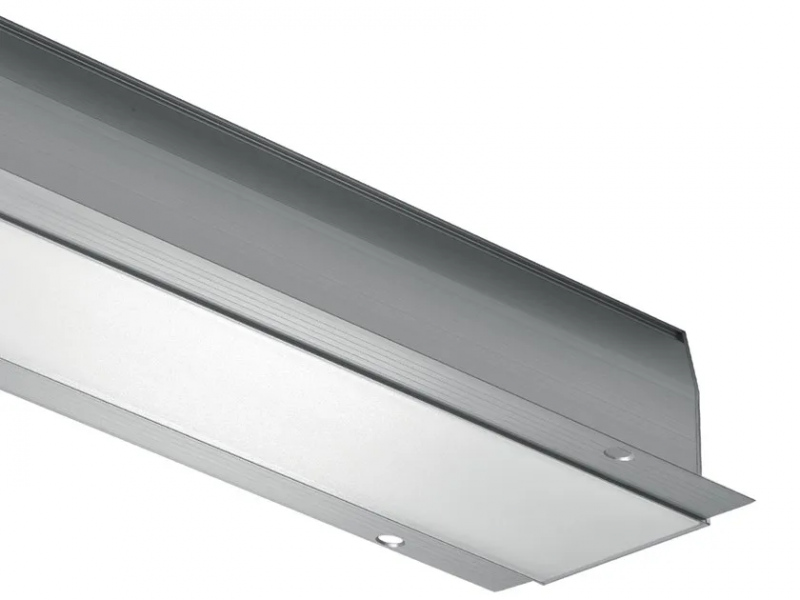

Linear profile for indoor applications
recessed (ceiling, wall)
Power: 27W/m, 54W/m
Power supply: 230Vac
Lumen output at source: 27W/m, 3000K: 1405 lm (562 mm), 2107 lm (842 mm), 2810 lm (1122 mm), 4213 lm (1682 mm), 5620 lm (2242 mm), 7022 lm (2802 mm) 54W/m, 3000K: 2810 lm (562 mm), 4214 lm (842 mm), 5620 lm (1122 mm), 8426 lm (1682 mm), 11275 lm (2242 mm), 14044 lm (2802 mm)
Delivered lumen output: 27W/m, 3000K, diffuse optics: 770 lm (562 mm), 1156 lm (842 mm), 1540 lm (1122 mm), 2312 lm (1682 mm), 3082 lm (2242 mm), 3853 lm (2802 mm) 27W/m, 3000K, microprismatic optics: 862 lm (562 mm), 1300 lm (842 mm) 1723 lm (1122 mm), 2584 lm (1682 mm), 3452 lm (2242 mm), 4307 lm (2802 mm) 54W/m, 3000K, diffuse optics: 1540 lm (562 mm), 2312 lm (842 mm) 3082 lm (1122 mm), 4623 lm (1682 mm) 6164 lm (2242 mm), 7705 lm (2802 mm) 54W/m, 3000K, microprismatic optics: 1724 lm (562 mm), 2586 lm (842 mm) 3452 lm (1122 mm), 5170 lm (1682 mm), 6902 lm (2242 mm), 8615 lm (2802 mm)
96/ 144/ 192/ 288/ 384/ 480 mid-power LEDs, 3 MacAdam steps, 50000h L90 B10 (Ta 25°C)
LED colour: 2700K, 3000K, 4000K
CRI: 90
Material: body in aluminium, screen in opal polycarbonate (diffuse version), screen in microprismatic polycarbonate (microprismatic version)
Length (lighting fixture): 842 mm, 1122 mm, 2242 mm, 562 mm, 2802 mm, 1682 mm
W/m: 27W/m, 54W/m
built-in power supply unit
terminal block
Control system: on / off, DALI
Ingress protection: IP40
CRI 90
required outer casing, not included
required screen, not included
Operating temperature: 0°C — +45°C
Maximum device temperature: 40°C (Ta 25°C)
Photobiological safety: risk group 1 according to EN6 2471:2006
Appliance class: I
Weight: 3.25 kg/m (flush)
3.38 kg/m (deep set)
Dimensions: flush: 110x76x567 / 847 / 1127 / 1689 / 2250 / 2810 mm
deep set: 110x91x567 / 847 / 1127 / 1689 / 2250 / 2810 mm.
