Information

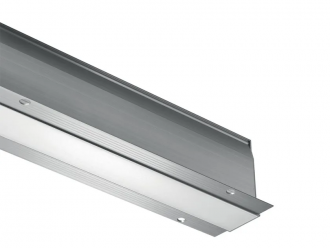

Linear profile for indoor applications
recessed (ceiling, wall)
Power: 19W/m, 27W/m
Power supply: 230Vac
Lumen output at source: 19W/m, 3000K: 1003 lm (562 mm), 1504 lm (842 mm), 2006 lm (1122 mm), 3010 lm (1682 mm), 4013 lm (2242 mm), 5016 lm (2802 mm), 27W/m, 3000K: 1404 lm (562 mm), 2106 lm (842 mm), 2810 lm (1122 mm), 4213 lm (1682 mm), 5620 lm (2242 mm), 7022 lm (2802 mm)
Delivered lumen output: 19W/m, 3000K, diffuse optics: 603 lm (562 mm), 904 lm (842 mm), 1206 lm (1122 mm), 1810 lm (1682 mm), 2413 lm (2242 mm) 3016 lm (2802 mm), 19W/m, 3000K, microprismatic optics: 654 lm (562 mm), 980 lm (842 mm), 1310 lm (1122 mm), 1960 lm (1682 mm), 2615 lm (2242 mm), 3016 lm (2802 mm)
27W/m, 3000K, diffuse optics: 844 lm (562 mm), 1266 lm (842 mm), 1700 lm (1122 mm), 2533 lm (1682 mm), 3380 lm (2242 mm), 4222 lm (2802 mm) 27W/m, 3000K, microprismatic optics: 915 lm (562 mm), 1370 lm (842 mm), 1830 lm (1122 mm), 2746 lm (1682 mm), 3660 lm (2242 mm), 4580 lm (2802 mm)
48/ 72/ 96/ 144/ 192/ 240 mid-power LEDs, 3 MacAdam steps, 50000h L90 B10 (Ta 25°C)
LED colour: 2700K, 3000K, 4000K
CRI: 90
Material: body in aluminium, screen in opal polycarbonate (diffuse version), screen in microprismatic polycarbonate (microprismatic version)
Length (lighting fixture): 1122 mm, 562 mm, 842 mm, 2242 mm, 1682 mm, 2802 mm
W/m: 19W/m, 27W/m
built-in power supply unit
terminal block
Control system: on / off, DALI
Ingress protection: IP40
CRI 90
required outer casing, not included
required screen, not included
Operating temperature: 0°C — +45°C
Maximum device temperature: 40°C (Ta 25°C)
Photobiological safety: risk group 1 according to EN6 2471:2006
Appliance class: I
Weight: 2.26 kg/m (flush)
2.40 kg/m (deep set)
Dimensions: flush: 82x80x567 / 847 / 1127 / 1689 / 2250 / 2810 mm
deep set: 82x95x567 / 847 / 1127 / 1689 / 2250 / 2810 mm.
