Information

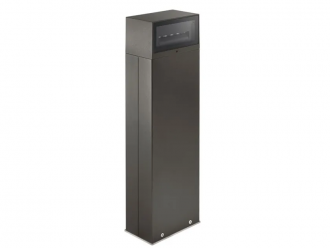

Bollard for outdoor applications
surface mounted (ground)
body in die-cast aluminium alloy EN AB 47100, column in sheet metal, screen in tempered glass
finishes: anthracite, white, cor-ten, grey
5+5 power LEDs
20W (10W + 10W) - 230Vac
built in power supply unit
includes connection box with 0,30 m cable
delivered lumen output: 256 lm (3000K) per beam
asymmetrical optics
LED colour: white - 2700K, 3000K, 4000K, 5000K
ingress protection: IP65
impact resistance: IK07
operating temperature: -20°C+45°C
screen temperature: max 40°C (Ta 25°C)
Glow Wire Test: 960°
photobiological safety: risk group 1 in accordance with EN62471:2006
appliance class: I
weight 4,80 kg h 600 mm, 5,70 kg h 800 mm
dimensions 170x100x600/800 mm
accessories: column - total height 600 mm WT60600E / WT60600F / WT60600H / WT60600T, column - total height 800 mm WT60800E / WT60800F / WT60800H / WT60800T
