Information

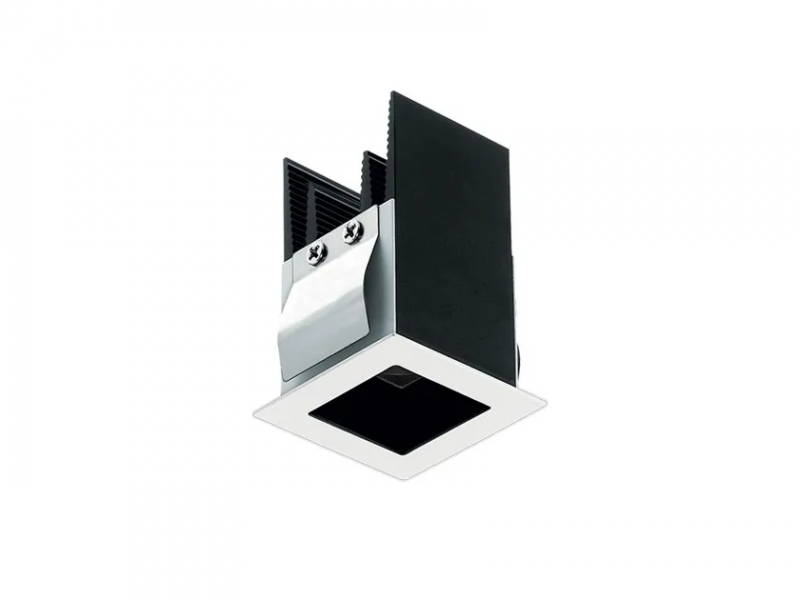

Recessed downlight for indoor applications
recessed (ceiling)
6,5W, 8W
24Vdc, 230Vac
Lumen output at source: 476 lm (3000K, CRI 90)
Delivered lumen output: 335 lm (3000K, 30°, CRI 90)
1 power LED High Intensity
LED colour: 2700K, 3000K, 4000K
Optics: 17°, 17°x45°, 30°, 42°
CRI: 80, 90
body in black anodized aluminium, trim in steel
Finishes: black, white
230Vac: power supply unit included, 24Vdc: power supply unit not included
Control system: on / off, 1-10V + PUSH, DALI
Ingress protection: IP40
Ingress protection mounted: IP44
Operating temperature: 0°C — +45°C
Maximum device temperature: 40°C (Ta 25°C)
Photobiological safety: risk group 1 according to EN6 2471:2006
Appliance class: III, II
Weight: 150 g
Dimensions: 49x49x71 mm
Cutout dimensions: 43x43 mm
Volume of thermal heatsink: 140x140x125 mm
Accessories: WC8700 Outer casing for solid walls, WC8703 Outer casing for plasterboard
Energy efficiency class: A / A+ / A++
