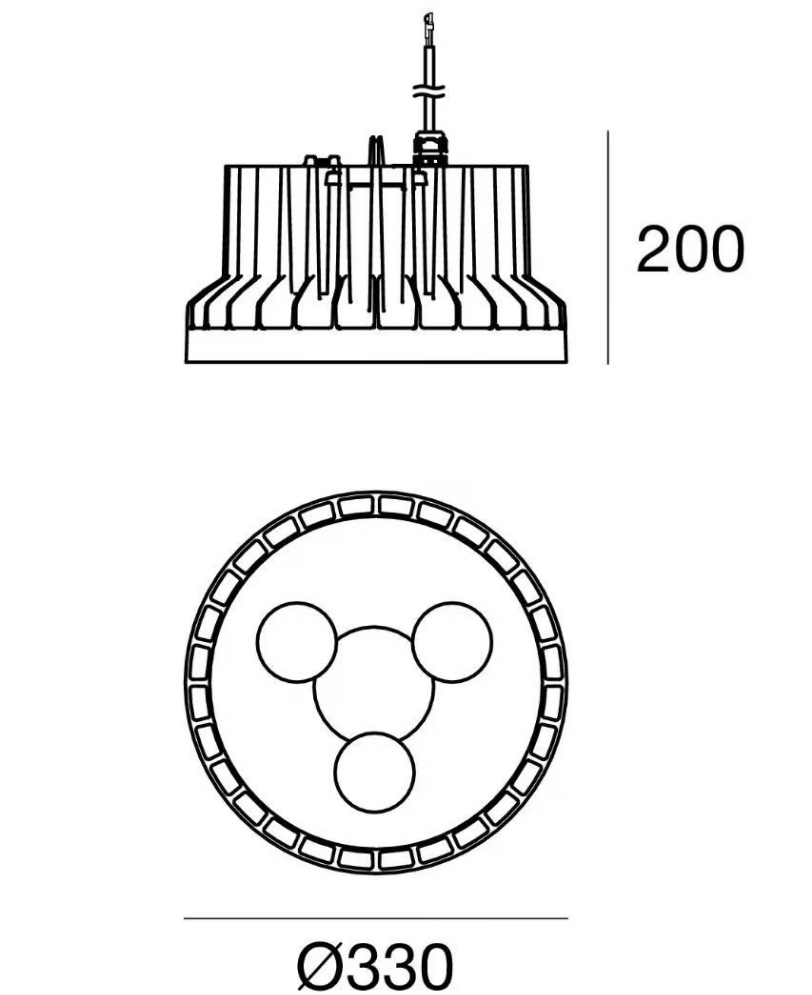

Overall dimensions
Information

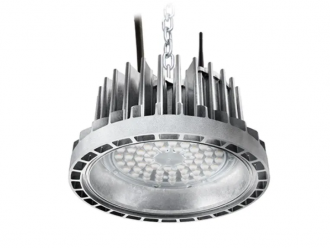

Raptor has been revamped and upgraded. The new light has a single high-performance die-cast aluminium body with low copper content, a structural material that ensures good anti-corrosion properties and excellent thermal performance. It comes with COB LED and SMD Top LED light sources. In the first, the optics are single and parabolic with 130W, 150W and 180W power. The diffuser is made of extra-clear tempered glass and can be installed in harsh environments with exposure to chemicals, acids, halides, solvents, grease and oil.
Light source:
- 198-264V AC /180-275V DC | 3 arrayLEDs 119W DC - 130W AC
- 198-264V AC /180-275V DC | 64 topLEDs 121W DC - 130W AC
- 198-264V AC /180-275V DC | 3 arrayLEDs 138W DC - 150W AC
- 198-264V AC /180-275V DC | 64 topLEDs 139W DC - 150W AC
- 198-264V AC /180-275V DC | 4 arrayLEDs 165W DC - 180W AC
- 198-264V AC /180-275V DC | 64 topLEDs 169W DC - 180W AC
