Overall dimensions
Information

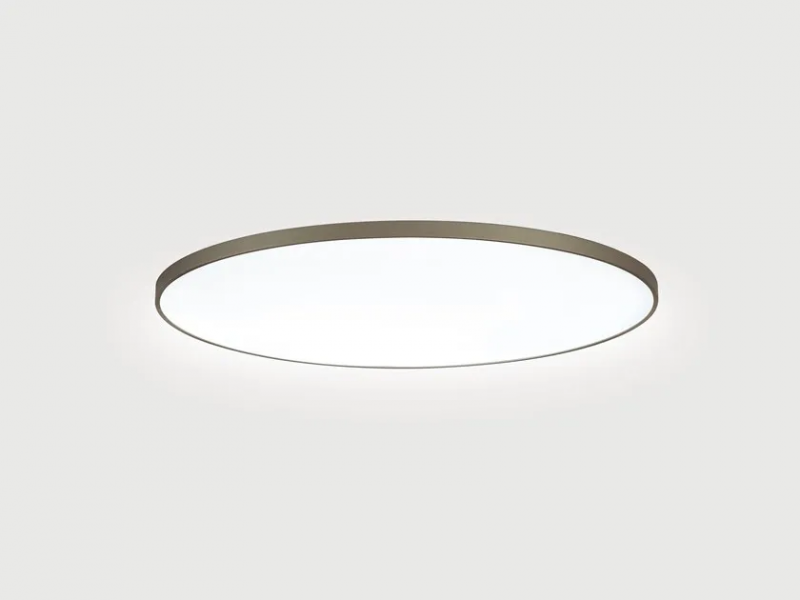

Semi Recessed LED luminaire for ceilings with cut-out openings. Direct only light distribution. Surrounding mounting frame with only 18mm visible overall height. Surface white, silver, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice.
Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Converter integrated into luminaire housing, optionally switchable or dimmable (1-10V, DALI, Touch-Dim, Casambi). Colour temperatures 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning initial ≤ MacAdam 3. Colour rendering CRI>80 or CRI>90. Recessed luminaire incl. mounting brackets. On request: Integration of emergency lighting components, sensor technology.
The classic and timeless luminaire Nature, like architecture, can be reduced to a few basic shapes: lines, dots, rectangles and circles. With our luminaires, we equip architects and lighting designers with these geometric shapes so that they can design architecture through light.
The BASIC family in the shape of a circle ensures maximum freedom in planning thanks to its particularly large product variety. "Basic" because the luminaire represents a basic shape, the eternal circle. It has proven itself on the market for more than 15 years and Lightnet is constantly developing and improving it.
The focus of the development was the circle of light. The luminous circle has an important meaning for people in general and for architecture in particular. In nature, it is always present as the sun and the moon. The circle symbolises unity, perfection, the absolute, eternity. To make the circle as puristic as possible and to focus on the circle of light, we designed the volume of the housing to be as small as possible. Even today, the BASIC offers the flattest construction sizes on the entire market.
An important feature of the BASIC is its scalability - it is available in very fine graduations (10cm each) and in many diameters: Smallest Basic = 20cm // Largest Basic = 1,5m diameter.
Following the company's sustainability approach, planners can thus give the different room sizes only as much light as necessary.
The new BASIC generations illuminate with a side light feed for an even flatter housing. The flattest BASIC has a frame height of 18 mm. This means we keep all options open for lighting design. In addition, the BASIC is available with opal diffusers and microprismatic screens for glare limitation - ideal for office spaces.
BASIC is available in all construction types (recessed, surface-mounted, pendant) as well as in direct and indirect versions, different suspensions, variants for plaster concrete ceilings, for spackling, rimless, with rim, 3-phase tracks, different pendant lengths, as free-standing luminaires, only as acoustic absorbers ... A multitude of variants to design architecture.
Due to the great variance, BASIC can be used in all areas - whether offices, public buildings, educational institutions, child care centres, lobbies, shops, shopping centres, ... - the possibilities are limitless.
