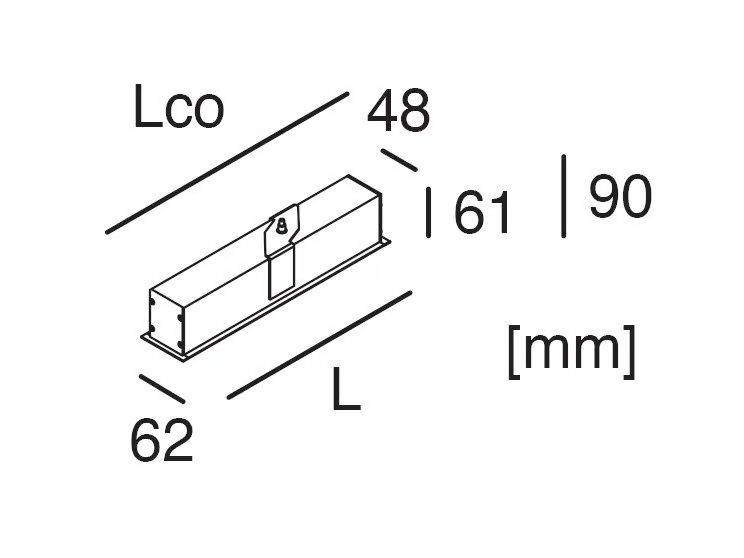

Overall dimensions
Information

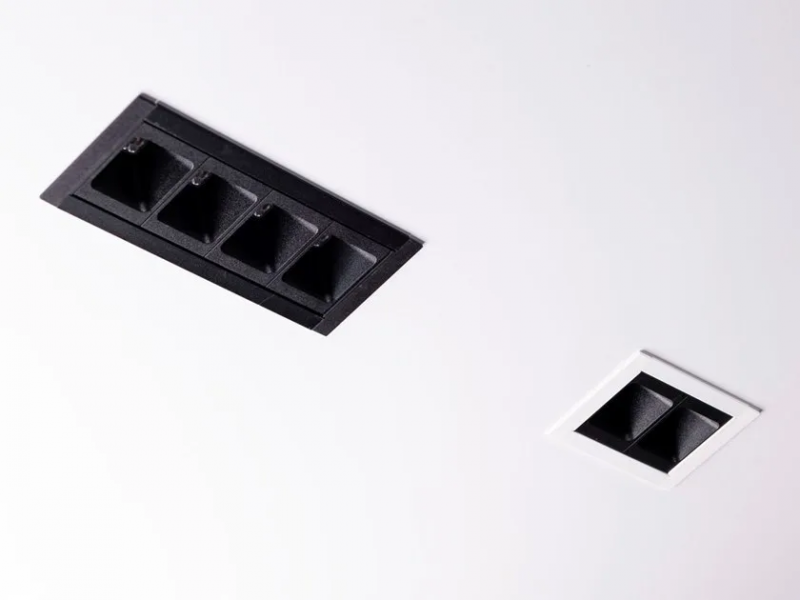

LED recessed luminaire ILO MINI, offers high quality, affordable and easy to install lighting solution. Premium lighting environment for sustainable office, education, retail and general lighting areas.
Material: High-quality aluminium housing with powder
Finishes: white RAL 9016 or black RAL 9005
Reflectors: white/white, black/black, white/black, black/white
Luminous flux: 231 lm
Colour temperature: 2700K
Luminaire efficacy: 105.8lm/W
LED service life: 100,000 hrs for luminous flux at 80% of initial value
Colour rendering index: Ra>80
Degree of protection: IP20
Mains voltage: 220-240V/ 50/60 Hz
Dimmer: DALI
Minimalistic, yet impressive. The shortest member of the ILO profiles family. With its aesthetic appeal, ILO MINI offers new application opportunities for a modern and sophisticated look of any type of environment, including offices, private sector, hotels, restaurants, museums, corridors and other similar areas.
Thanks to its short lengths, it gives a minimalistic and elegant touch to the ceilings. Specially developed and designed optical lenses deliver optimal wide (more general light) or narrow (more concentrate light) light distribution to adapt the lighting to specific needs, whether it is for basic illumination or to accentuate individual areas.
