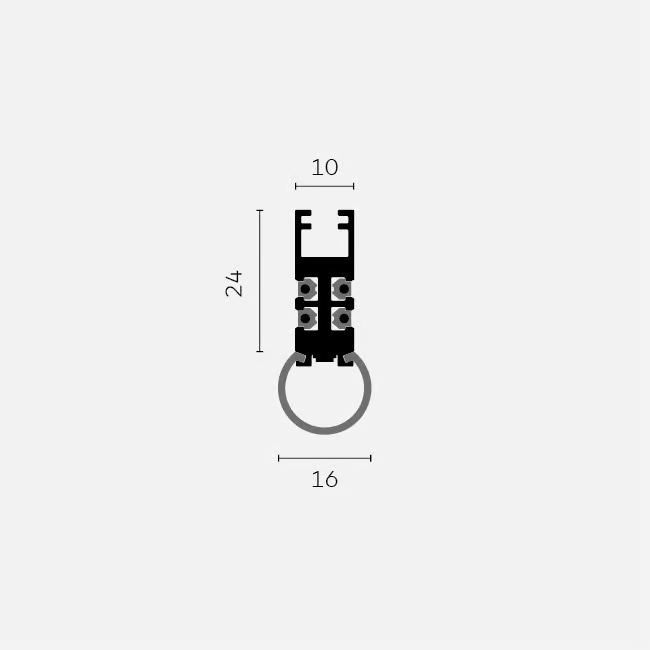

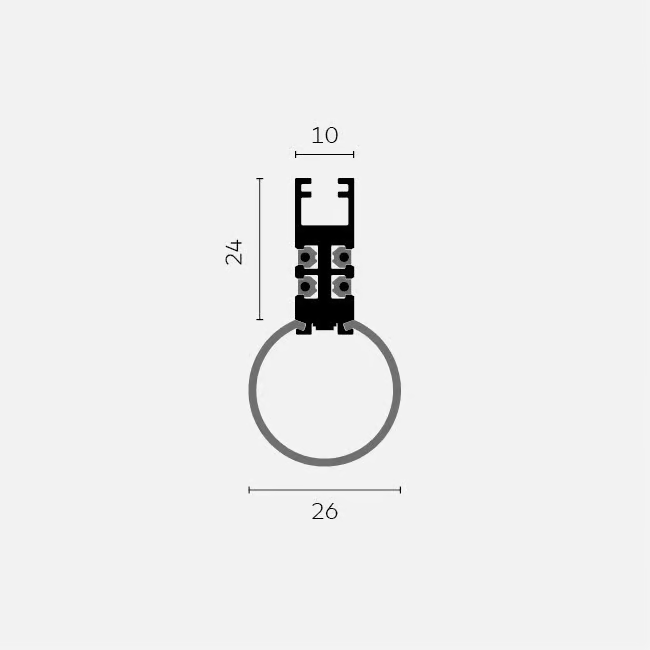

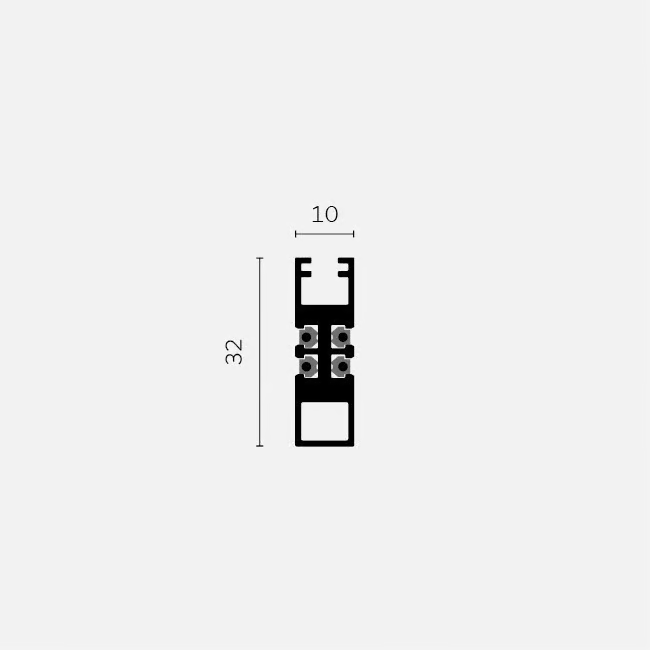

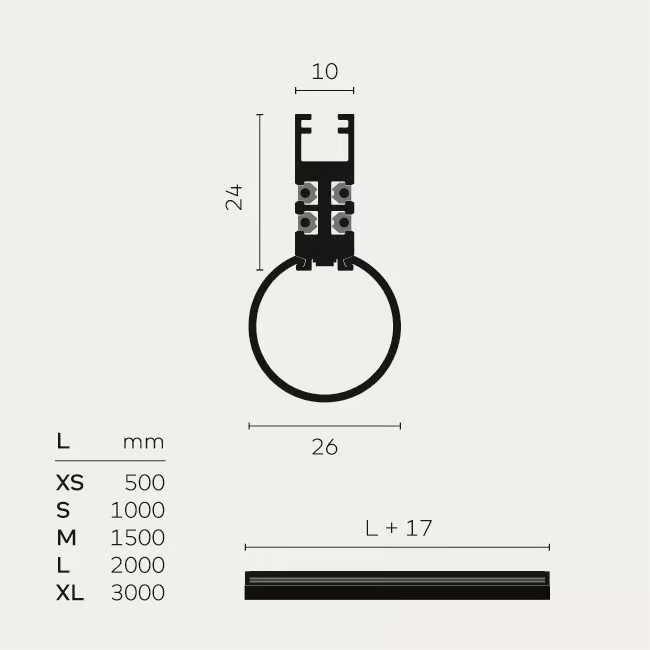

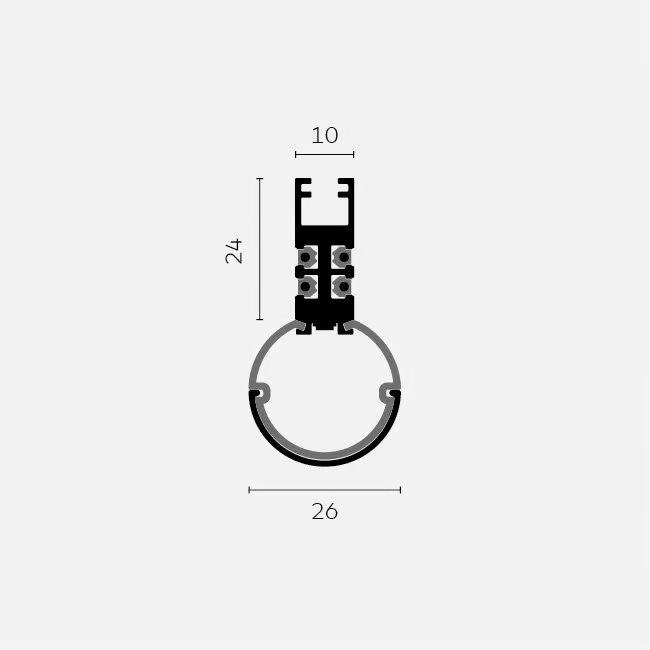

Overall dimensions
Information
The basic 24V profile can be either recessed or surface mounted and can optionally be equiped with 16mm or 26mm diameter satinated continuous light tubes for a sustained soft light distribution.
An engenious junction allows a perpendicular, 90° tilted second level connection of the 24V profile.
Models:
kr954502 - kagi 16 surface mounted, level 1
kr954602-DIF - kagi 26 surface mounted, diffusor, level 1
kr954602-SBU - kagi 26 surface mounted, silver bowl under, level 1
kr954902 - kagi blind surface mounted, level 1
kagi means "key" in Japanese referring to the shape of a keyhole, which equals the shape of the profile, and mimics the key to a 3-dimensional world.
kreon kagi is an innovative and extremely versatile profile system combining linear and accent lighting.
The basic 24V profile can be either recessed or surface mounted and can optionally be equiped with 16mm or 26mm diameter satinated continuous light tubes for a sustained soft light distribution.
An engenious junction allows a perpendicular, 90° tilted second level connection of the 24V profile.
Additionally, round or square shaped spotlights and wallwashers can be added by clamping them on the main profiles. It is possible to change the position of the spotlights over the track. kreon kagi is an essential tool for architects and lighting designers that can be used as a graphic play of light or guide light.
The kreon kagi profiles and the modules can be dimmed wireless with the Casambi app.
