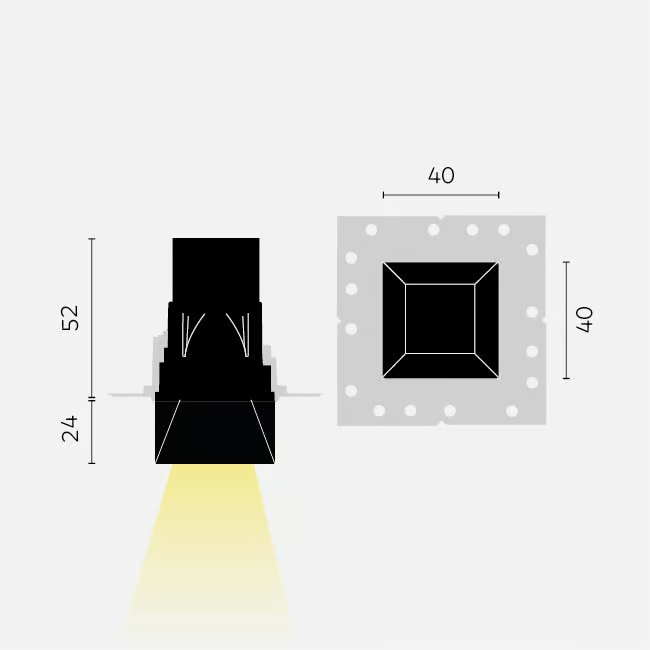

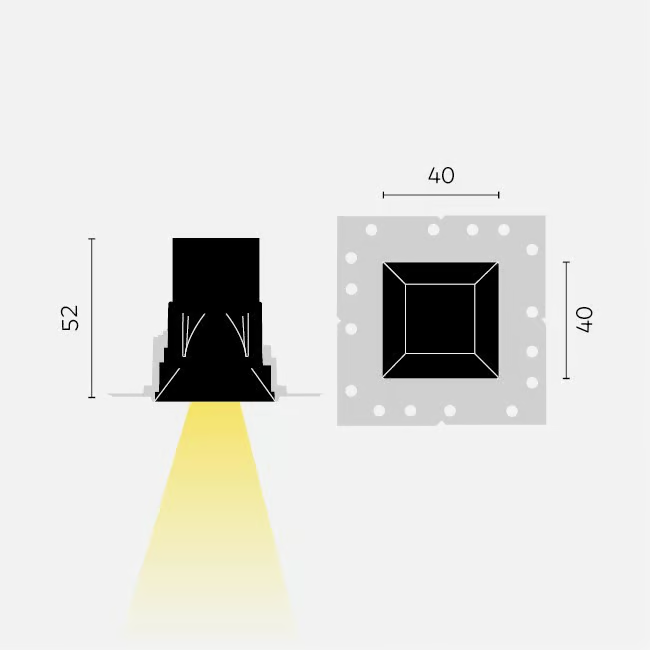

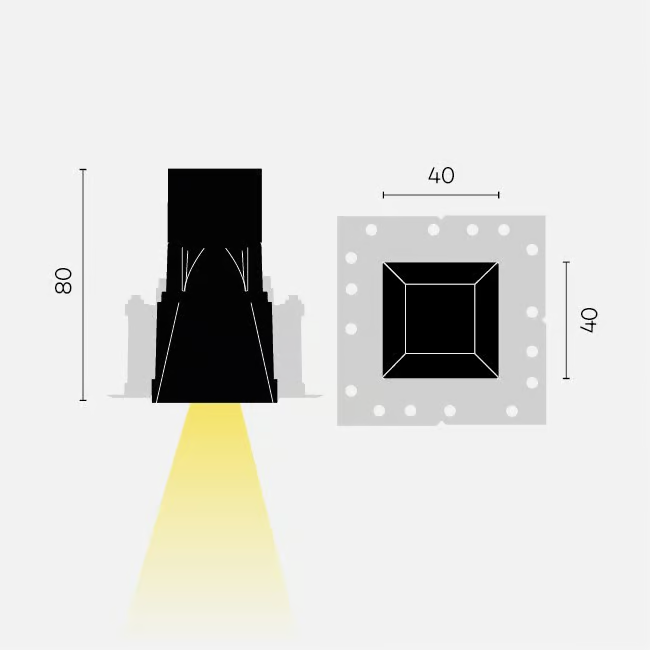

Overall dimensions
Information

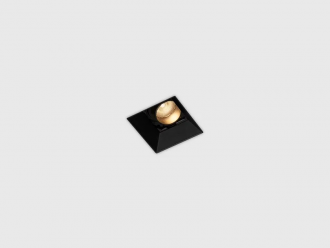

Down in-line 40 is a recessed spotlight available in 3 directional, downlight and wallwasher versions in different colors.

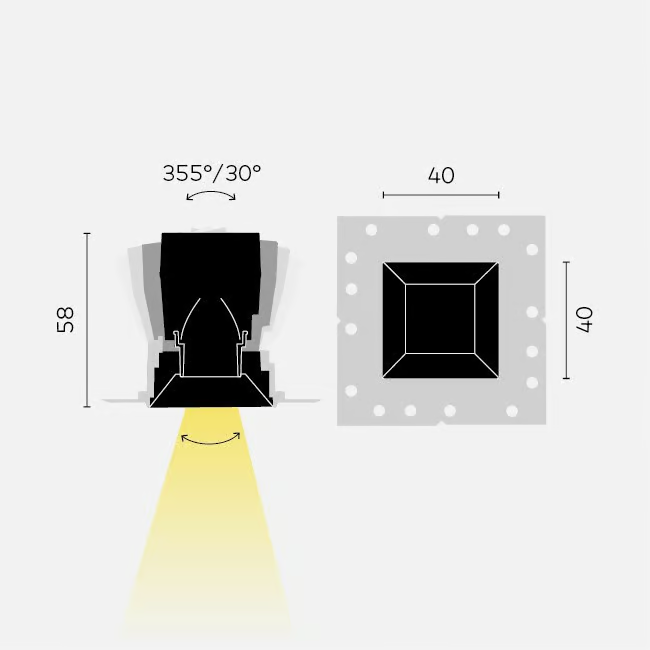

kreon down in-line directional is a fully recessed spotlight with a built-in snoot that serves two purposes. Firstly it absorbs stray flux, so aiding beam control, and secondly it provides an integrated mounting ring for the fixation of additional optical lenses for increased optimisation. kreon down in-line directional has a rotational adjustment of 360º and an angular adjustment of 30º, which when com-bined with the choice of spot, flood and wide flood TIR reflector, provides a truly versatile accent lighting tool.
kreon down in-line fixed is the perfect solution for general lighting and features a flood beam mirror reflector set above the black or white internal louvre, optimised to create pools of light on horizontal surfaces or dramatic scalloping effects on verticals.
kreon down in-line wallwasher provides near perfect uniformity on vertical surfaces. This is made possible by the unique optical design that is capable of reflecting light to the very top of adjacent walls through a full 180º beam angle, whilst still maintaining an effective downlight component.
Models:
KR907733 - down in-line 40 directional, LED
KR907033 - down in-line 40 downlight, LED
KR907331 - down in-line 40 wallwasher, LED, white
KR907332 - down in-line 40 wallwasher, LED, black
kreon down in-line directional is a fully recessed spotlight and has a rotational adjustment of 360º and an angular adjustment of 30º which, when combined with the choice of spot, flood and wide flood TIR reflector, provides a truly versatile accent lighting tool.
kreon down in-line fixed is the perfect solution for general lighting and features a flood beam mirror reflector set above the black or white internal louvre, optimised to create pools of light on horizontal surfaces or dramatic scalloping effects on verticals.
kreon down in-line wallwasher provides near perfect uniformity on vertical surfaces. This is made possible by the unique optical design that is capable of reflecting light to the very top of adjacent walls through a full 180º beam angle, whilst still maintaining an effective downlight component.
