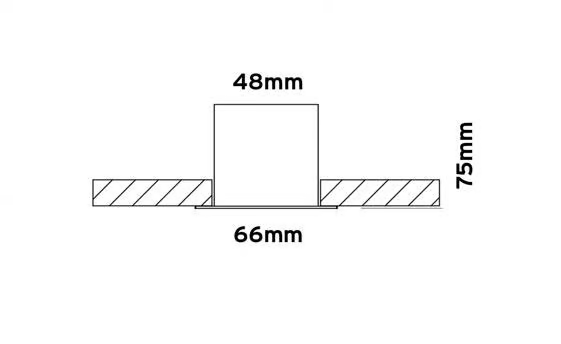

Overall dimensions
Information

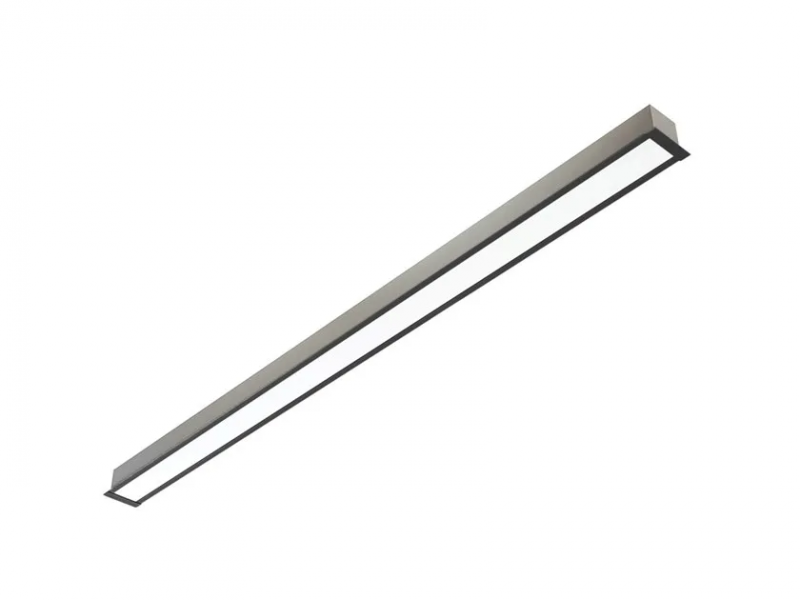

Profile 500 Recessed SR is a semi-inset aluminium linear lighting profile.
Lightsource: Philips Fortimo
Color: White, Aluminium, Black, Custom
Dim options: DALI (Profile 500 Recessed SR), N/A (Profile 500 Recessed TW)
Lumen: 2200lm, 3300lm, 4400lm, 5500lm, 6600lm, 7700lm, 8800lm, 9900lm, 11000lm (Profile 500 Recessed SR), 2200lm, 4400lm (Profile 500 Recessed TW)
Wattage: 14W, 20W, 26W, 33W, 39W, 46W, 52W, 58W, 64W (Profile 500 Recessed SR), 16W, 28W (Profile 500 Recessed TW)
Color Temperature: 3000K, 3500K, 4000K (Profile 500 Recessed SR), 2700-6500K (Tunable White) (Profile 500 Recessed TW)
CRI >80, On request
Cover: White Opalic, Microprismatic
Length: 652mm, 932mm, 1213mm, 1494mm, 1775mm, 2056mm, 2337mm, 2618mm, 2899mm (Profile 500 Recessed SR), 582mm, 1163mm (Profile 500 Recessed TW)
IP20, IP44
