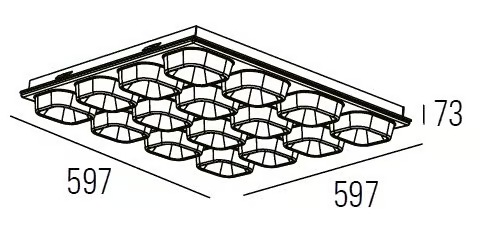

Overall dimensions
Information

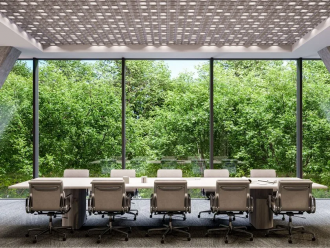

Vyko is an advanced all-inone product, able to create various scenarios and personalized micro ambiences. Therefore, it is a perfect pick for offices and large open spaces. 3D ecofriendly acoustic panels are made from 100 % recyclable fibre, in order to guarantee an echo friendly acoustic performance. And above all things, it provides efficient homogeneous light distribution.
Technical features
Light source: High-power COB LED, CRI>90, MacAdam≤2, 50.000h L90 B10 at 35°C
Optic: Acrylic glare-free LFO lens / Satined prismatic lens dome for uniform light distribution
Body: Thermoformed acoustic felt
Control gear: Integrated highly-efficient driver with fixed output (FO) or dimmable (DALI-TD, Casambi)
Power supply: 230V 50Hz
LFO
Glare control: UGR<19
Optics: LFO 32°
Luminaire luminous flux: 660 lm
NO of spots / panel: 4
LED colour: 927, 930, 935, 940
Driver: Casambi, DALI, FO
Driver position: Remote
Material: Thermoformed acoustic felt
Sound absorbing surface: 0,6 sqm
DECO
Glare control: UGR<19
Optics: Diffused
Luminaire luminous flux: 600/700/1600 lm
NO of spots / panel: 6, 7, 16
LED colour: 927, 930, 935, 940
Driver: Casambi, DALI, FO
Driver position: Remote
Material: Thermoformed acoustic felt
Sound absorbing surface: 0,6 sqm
DARK
Material: Thermoformed acoustic felt
Sound absorbing surface: 0,6 sqm
