Tracker
ICB-60282
Освещение профиль
2020

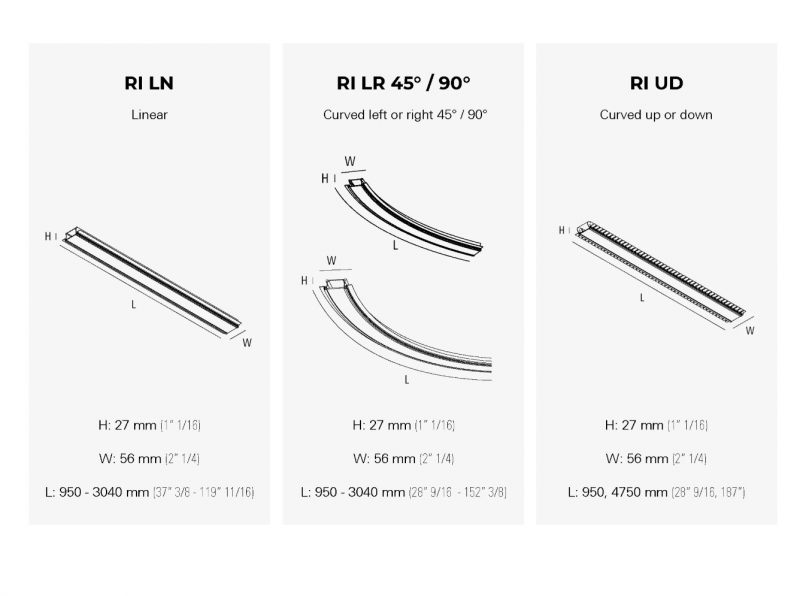

Tracker RI LN (Linear); L (mm): 950 - 3040; ; Tracker RI LR 45°/90° (Curved left/right); L (mm): 1140 - 3040; R (mm): 726 - 3871; ; Tracker RI UD (Up/down); L (mm): 950, 4750; R min/max (mm): 500
Overall dimensions
Information

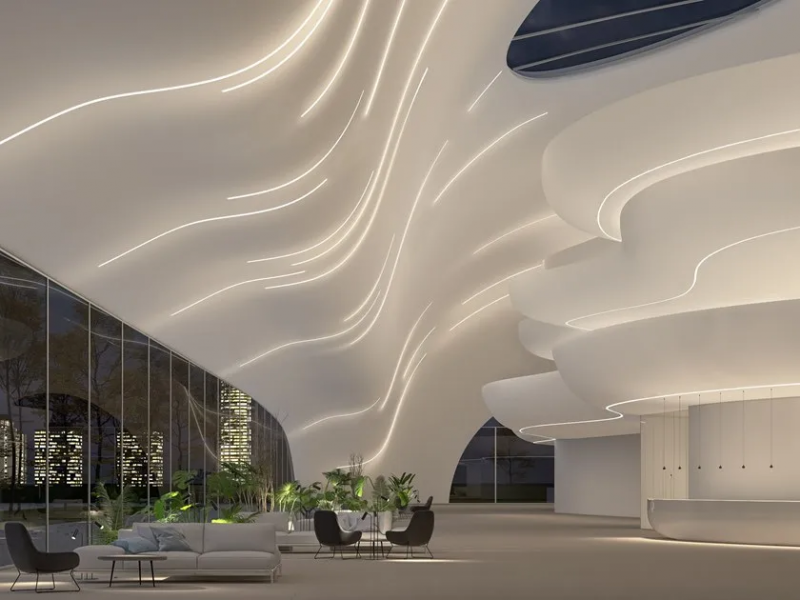

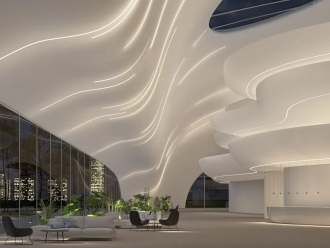

Created to create, Tracker is made to track the fluid architecture and is by far the most adjustable trim-less luminaire by Intra lighting when it comes to shapes. Tracker is the first luminaire to go beyond horizontal movement and introduce endless possibilities to follow vertical lines in the space as well. With its ability to adapt to wall or ceiling radius (+/-500 mm), Tracker can vary from bold and artistic to a luminaire that discreetly blends in and supports the creativity of the architect or lighting designer. And it’s not only about its clean looks
it’s also about the hidden logic of this luminaire, as it fits perfectly with standard construction elements.

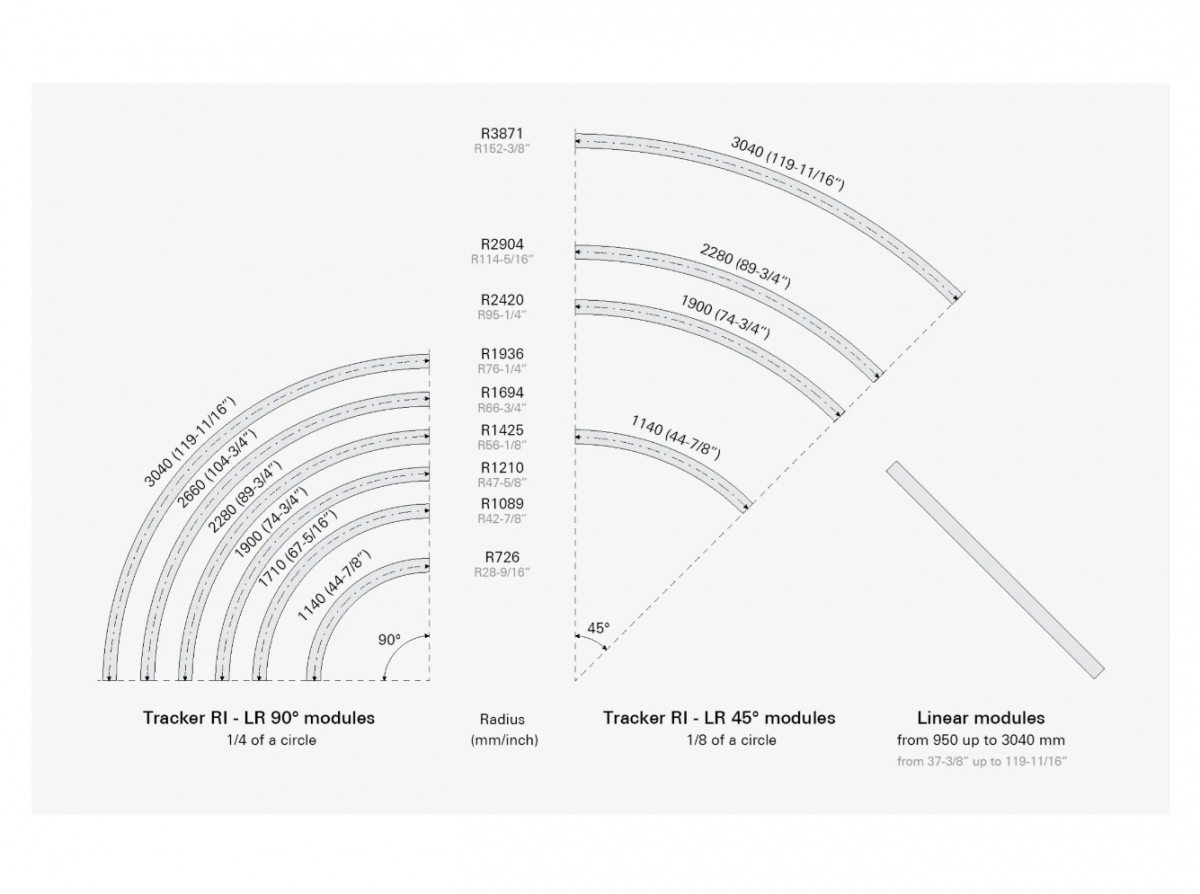

Radius: 726 - 3871 mm
Luminous flux/m: 1700 lm/m, 2400 lm/m
Optics: SOP, DPR
Led colour: 827, 830, 840, 930, 940
Driver: Casambi, DALI, FO (24V remote)
