Information
Underscore is only 6 mm wide, thinner than a pencil. Underscore6 is the smallest line of light available on the market. It boasts minimal dimensions of a mere 6 millimetres of linear light created with monochrome LEDs and available in different colour temperatures. The product consists of two elements. The first is an aluminium profile that dissipates heat correctly, thereby guaranteeing superior longlife performance, while the other is a light strip. High quality construction. A twin layer of protective coating separates the upper emitter and the lower LED chamber. This unique design in which the light strip and cover are two separate elements, reduces stress and stops the strip from getting broken. Underscore guarantees optimal uniformity of emission thanks to the combination of a diffusing, opal finish, an upper protective coating and radial LED emission.
• Protective covering in thermodissipative silicone elastomer with diffusing finish.
• It can be sectioned at pre-set intervals. The non-sectioned strips (full length) have IP65 protection class
the ends of circuits are fitted with IP20 end cables, therefore the installer is responsible for completing insulation operations.
• The values specifying colour temperature of the white LEDs are indicative and subject to variation.
• The strip is specifically intended for use with innovative aluminium profi les designed to create extremely thin lines of light and striking illumination effects.

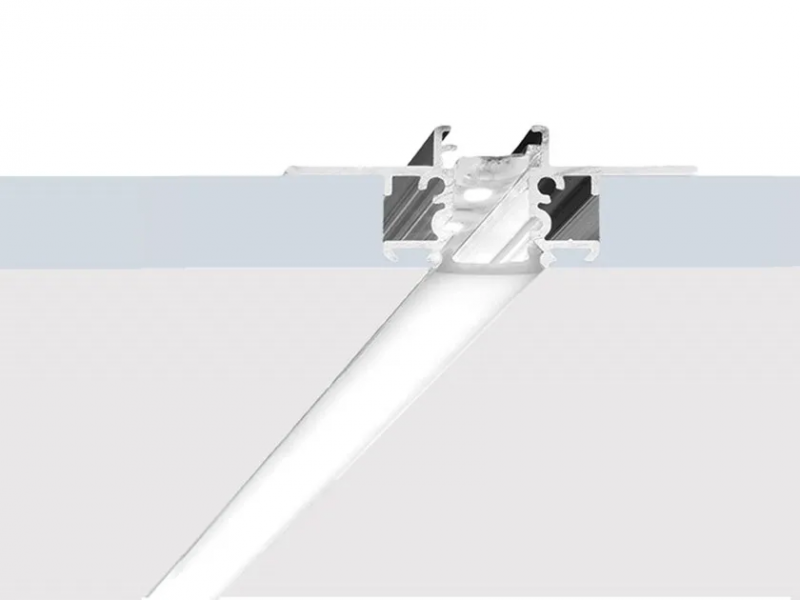

• Flush mount frame and minimal linear profiles for internal angles or edges and for surface applications.
