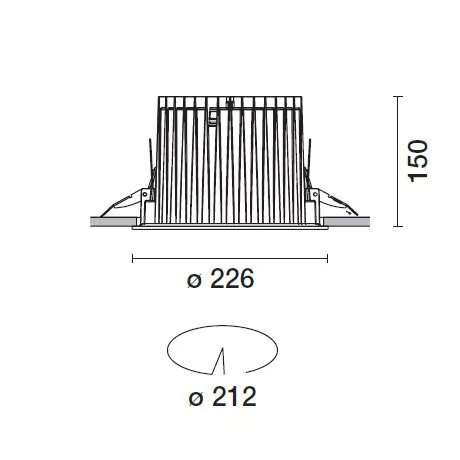

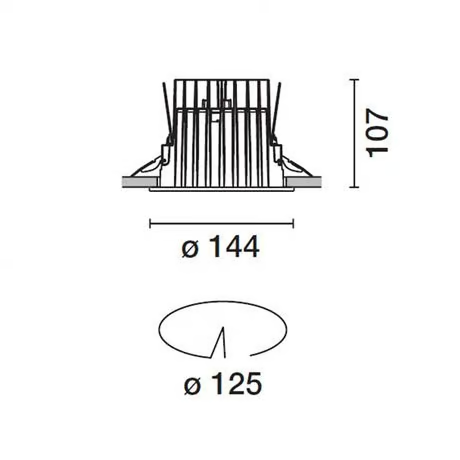

Overall dimensions
Information
• Body and heat-sink in die-cast and extruded aluminium.
• Refl ector in metallic-fi nish thermoplastic material with scratch protection for excellent lighting effi ciency and visual comfort.
• Versions suitable for use in settings with UGR <19 video terminals, Super Comfort UGR <10 versions.
• General lighting versions available with white refl ector.
• Available with electronic wiring and DALI.
• The minimum installation space dimensions are listed in the online instruction catalogue.
• IP20
• IP43 on the visible body of the mount after installation (Minimal versions).
• IP54 on the visible body of the mount after installation (Frame versions).
