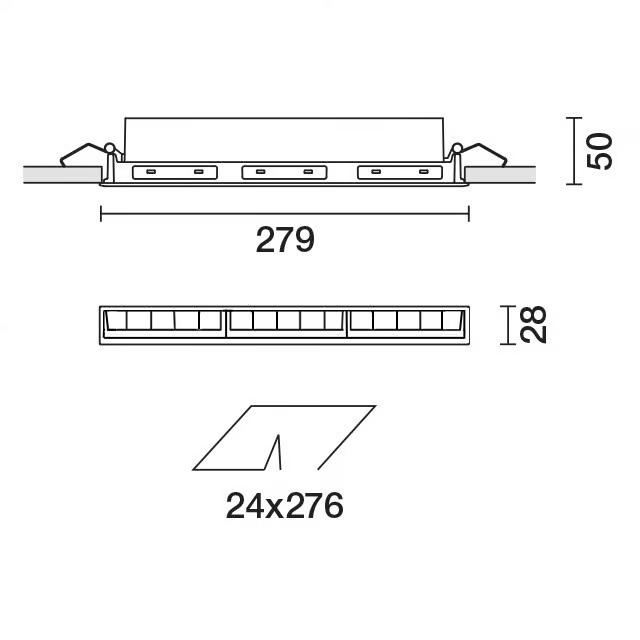

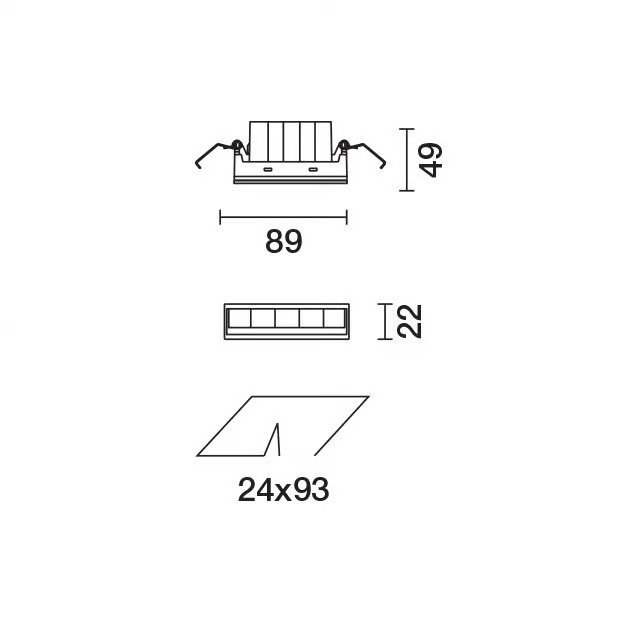

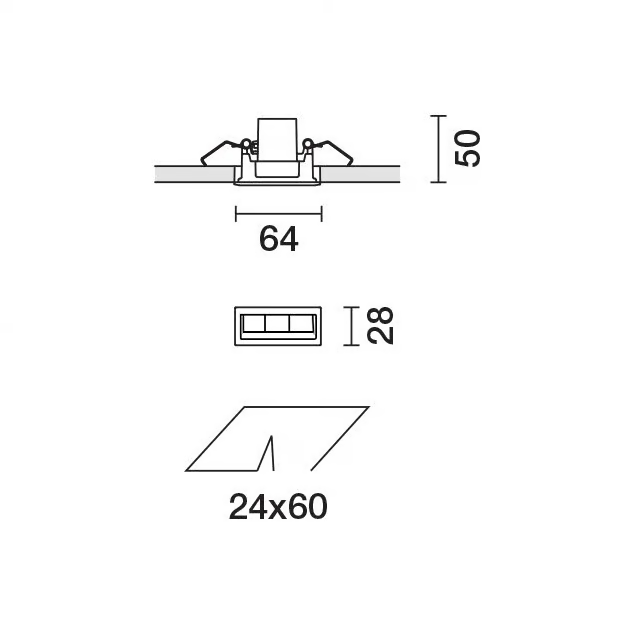

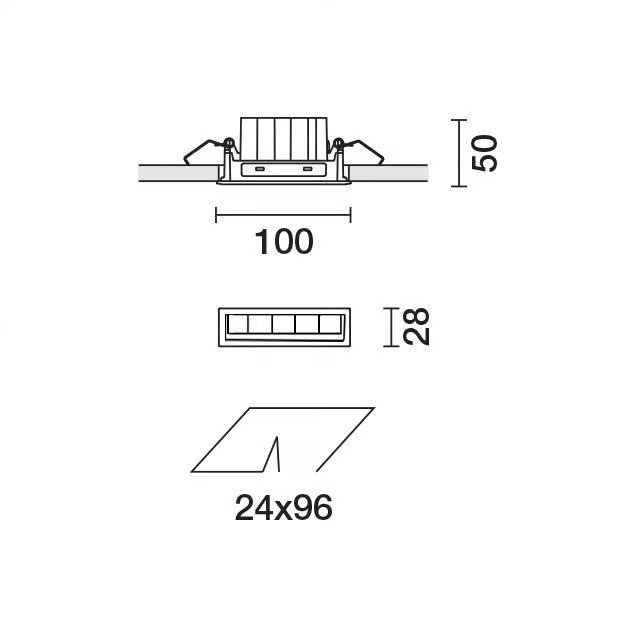

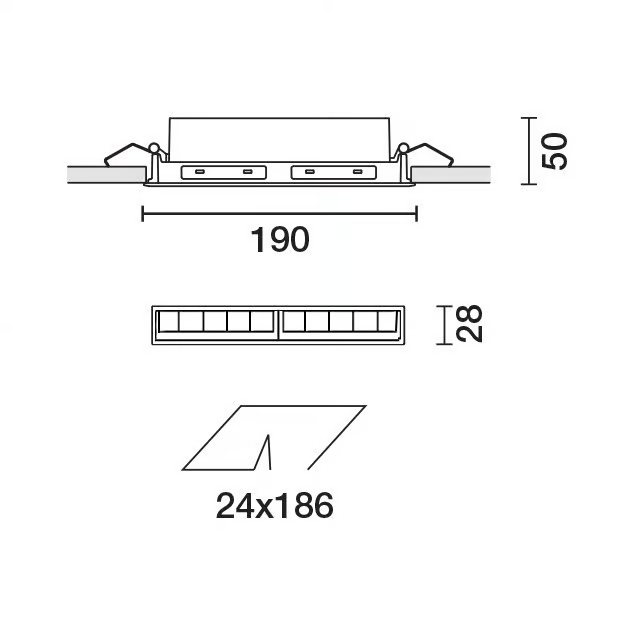

Overall dimensions
Information

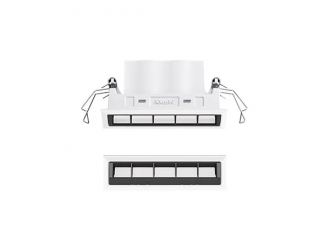

Laser Blade XS Wall Washer / ceiling, Low Voltage Track, LGC
The Blade is more than a product, more than innovation, more than a luminaire. It's a declaration of beauty. The Blade demonstrates the need to discover another world, it interprets the age-old requirement of illuminating architecture from architecture itself. The Blade cuts through ceilings and disappears into grooves just 28mm wide to perform a trick of light: architecture that opens to illuminate itself. The Blade is a masterpiece of precision, nano technology capable of transforming a small invisible Led into a powerful and uniform circle of light.
• Flush mount installation in false ceilings with 12.5 – 15 – 20 mm thickness for Minimal versions (without perimeter rim) or from 1 to 25 mm thickness for Frame versions (with rim) using torsion springs.
• Main body with radiant surface in die-cast aluminium.
• Patented optics with textured asymmetrical microprism diffuser screen, designed to achieve an effective wall washer distribution.
• Tunable White versions are available (2700K ÷ 5700K).
• Installation without tools.
• The minimum sizes of the installation compartment are displayed in the instructions sheet available on the online catalogue.
• IP20
• IP43 on visible part of flush-mount after product installation.
