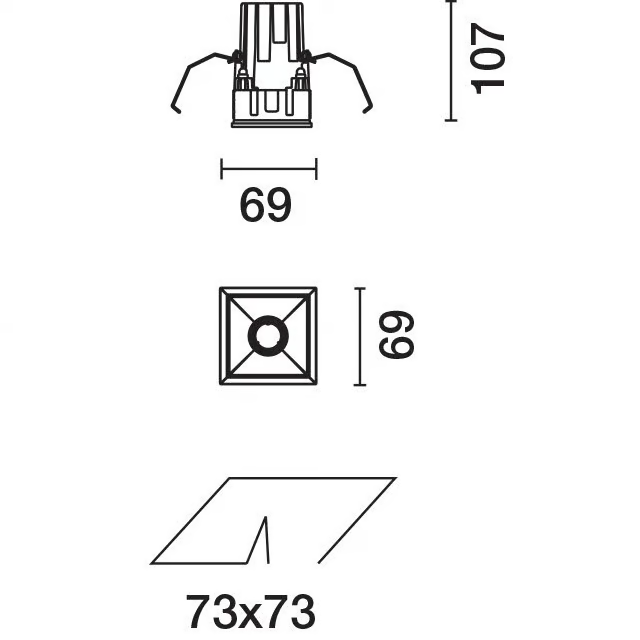

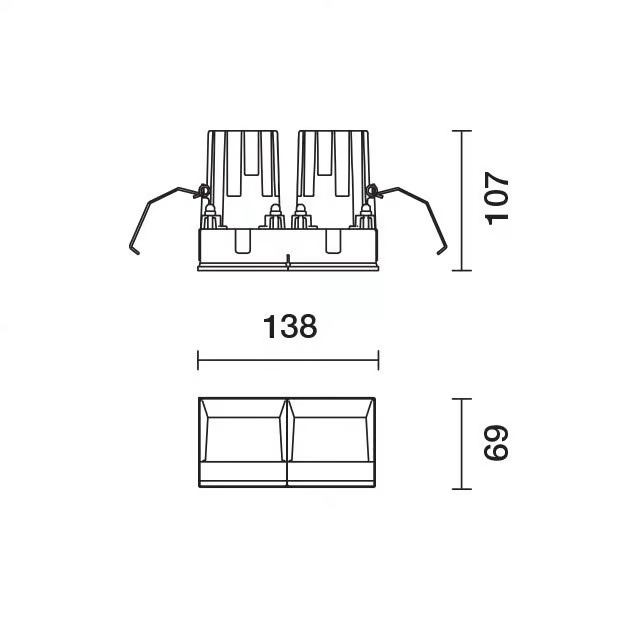

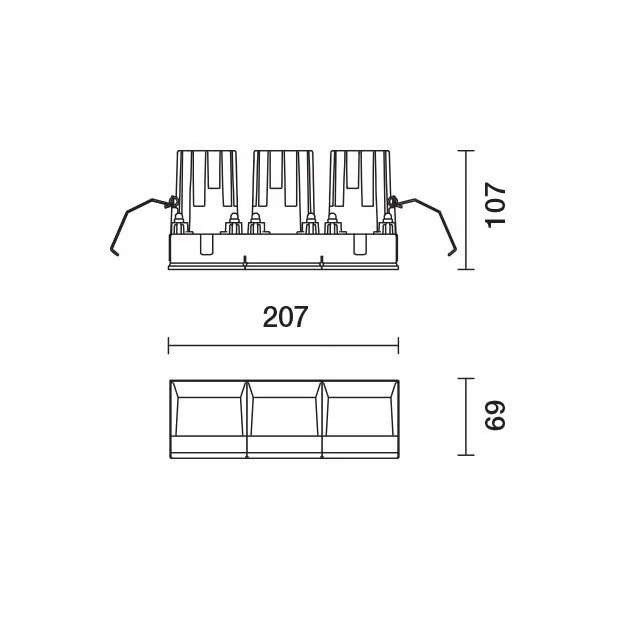

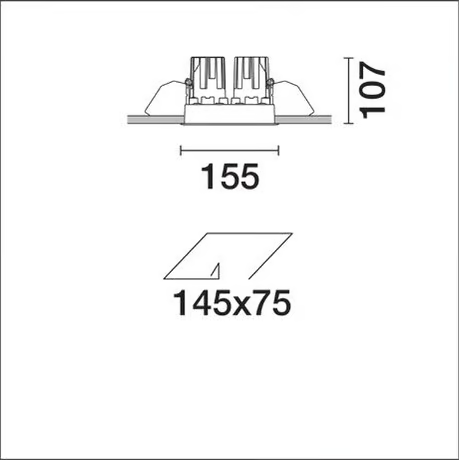

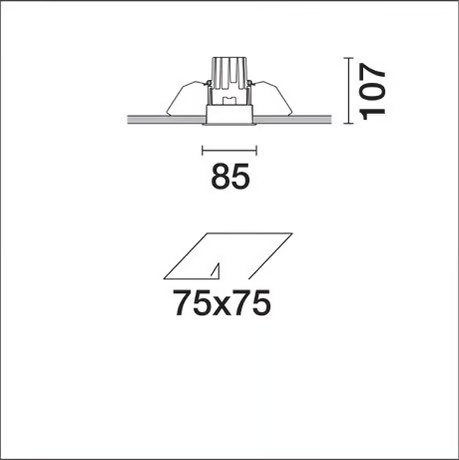

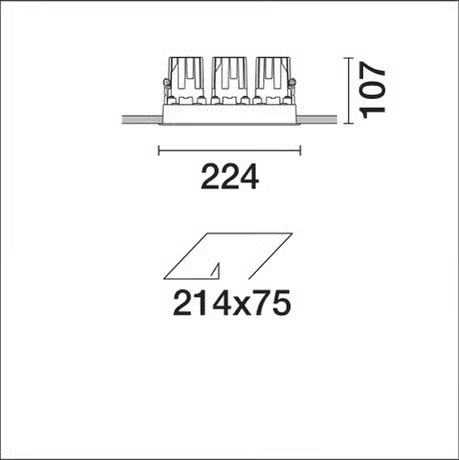

Overall dimensions
Information
• Recessed installation in false ceilings with 12.5 to 25 mm thickness for the Minimal version (without perimiter rim) or from 1 to 25 mm thickness for the Frame version (with rim).
• Main body with radiant surface made of die-cast aluminium.
• Metallised thermoplastic high definition optics, integrated in the innovative black anti-glare screen which creates light emission with controlled luminance UGR<10.
• High visual comfort.
• Installation without tools.
• The minimum sizes of the installation compartment are displayed in the instruction sheet.
• IP20.
• IP44 for visible body of fitting after installation.
