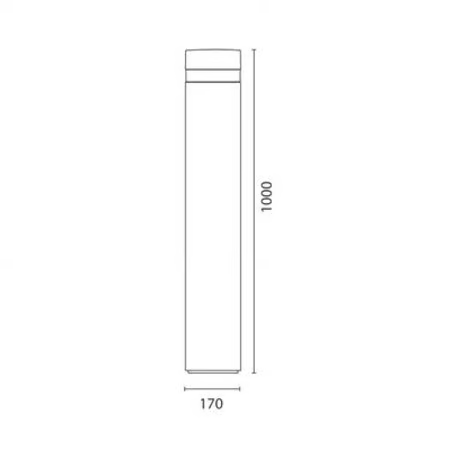

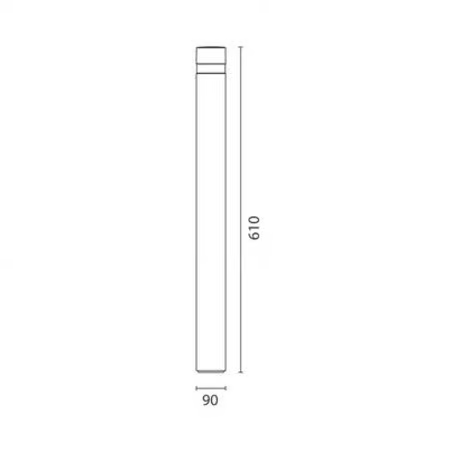

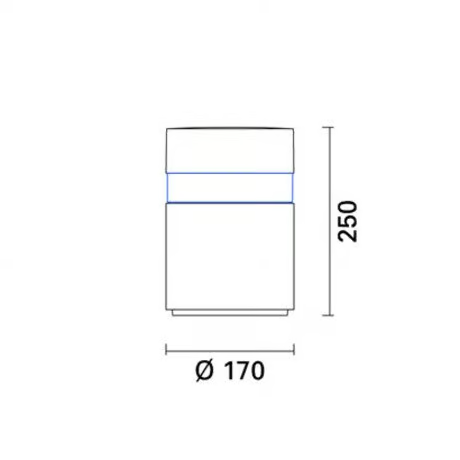

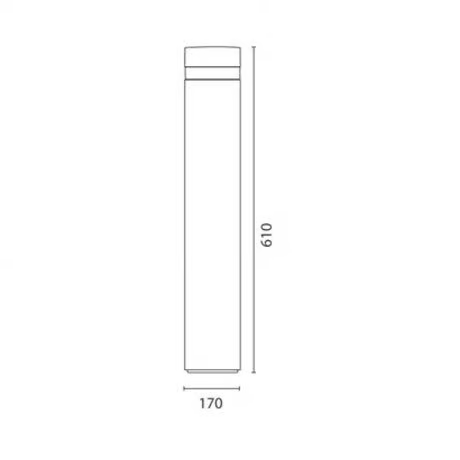

Overall dimensions
Information

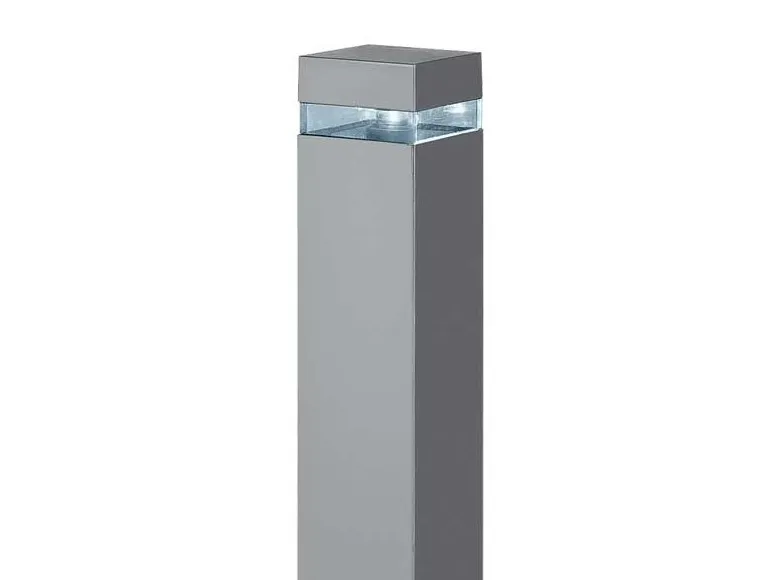

iWay square / iWay round
• Direct light luminaire for use with LEDs.
• The fixture is installed in the ground.
• iWay has a body and lamp compartment.
• Extruded aluminium body
low copper content die-cast aluminium alloy base for fixing to the ground
polycarbonate diffuser
sheet aluminium lamp cover guard
super-pure aluminium reflector.
• Aluminium component-holding box, die-cast (ø 170 mm) or extruded (ø 90 mm versions)
removable component-holding plate, fixed to the box by captive screws.
• Anchor base has Geomet-treated clamps, which are an extra guarantee against corrosion (to be ordered separately).
• High visual comfort.
• Temperature of contact <75°.
• All screws are A2 stainless steel.
