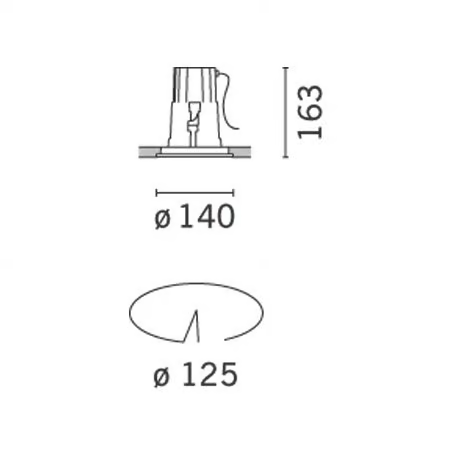

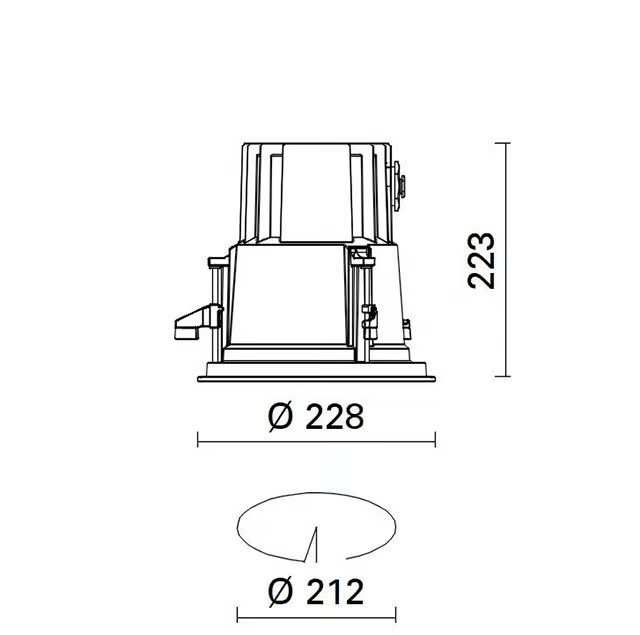

Overall dimensions
Information

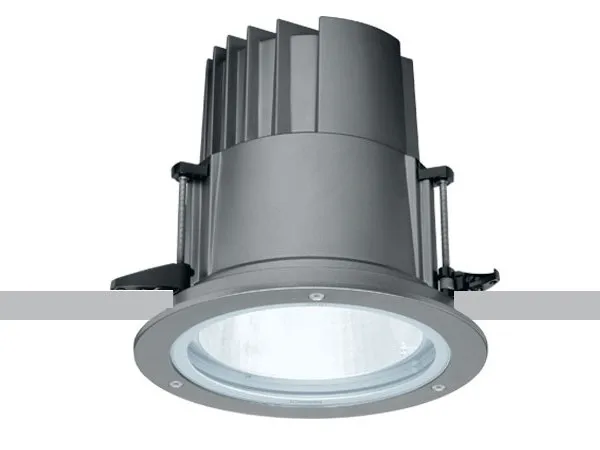

• Luminaire with direct emission for use with LEDs.
• Recessed installation into the ceiling.
• High visual comfort.
• Composed of (circular) optical assembly, frame, lateral component box and outer casing to be ordered separately, if necessary.
• Aluminium alloy optical assembly and frame
sodium-calcium tempered glass, secured to the frame with silicone
99.96% super-pure aluminium reflectors
the lateral component holder box and top end cap are made of plastic (small body) or aluminium alloy (large body)
complete with a silicone internal gasket to guarantee watertightness.
• Outer casing for concrete false ceilings made of black-painted pre-galvanized steel sheet complete with end cap and threaded bar..
• Versions with multiwatt ballasts available.
• Adjustable optics.
• Luminaire reduced height.
• Luminaire ready for pass-through wiring.
• All external screws are A2 stainless steel.
