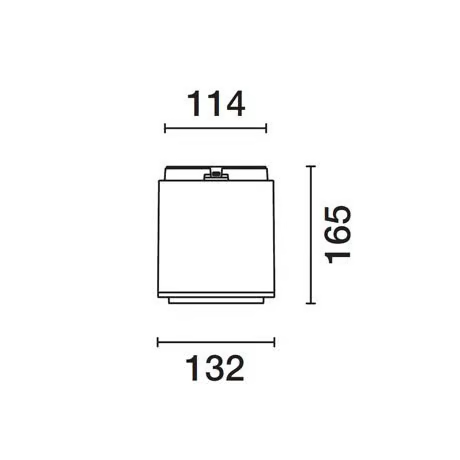

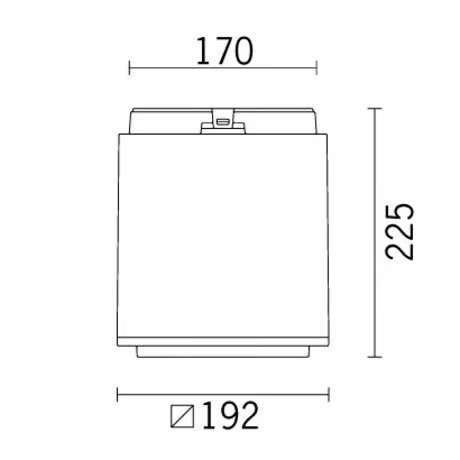

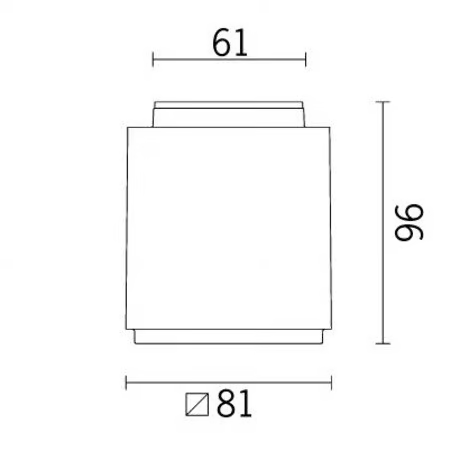

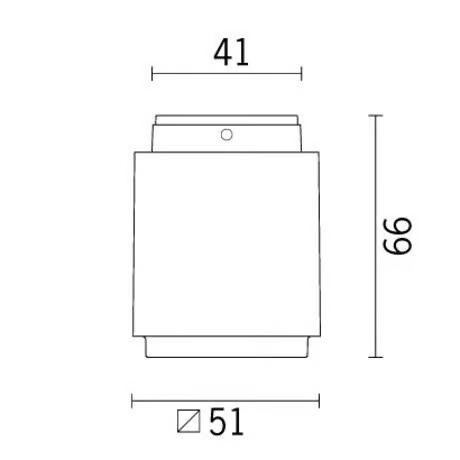

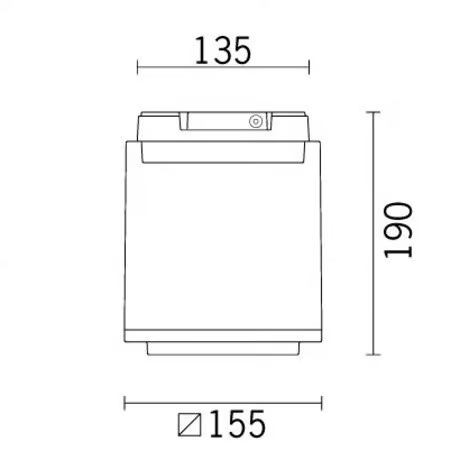

Overall dimensions
Information

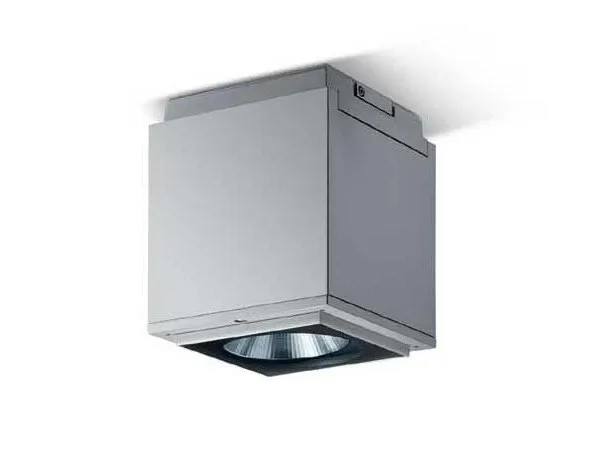

LED luminaire.
Optical assembly, upper cap for ceiling-mounted installation made of die-cast aluminium
transparent tempered sodium-calcium sealing glass, 4 mm thick, siliconed to optical assembly.
All products are provided with lenses or high reflection flux enhancers in thermoplastic material.
Mini body versions provided with electronic power supply (Vin 100÷240Vsc 50/60Hz)
micro body with electronic power supply to be ordered separately (500/700mA, versions CLIII) except for wall-mounted up/down light.
Luminaire ready for pass-through wiring.
All external screws are in A2 stainless steel.
