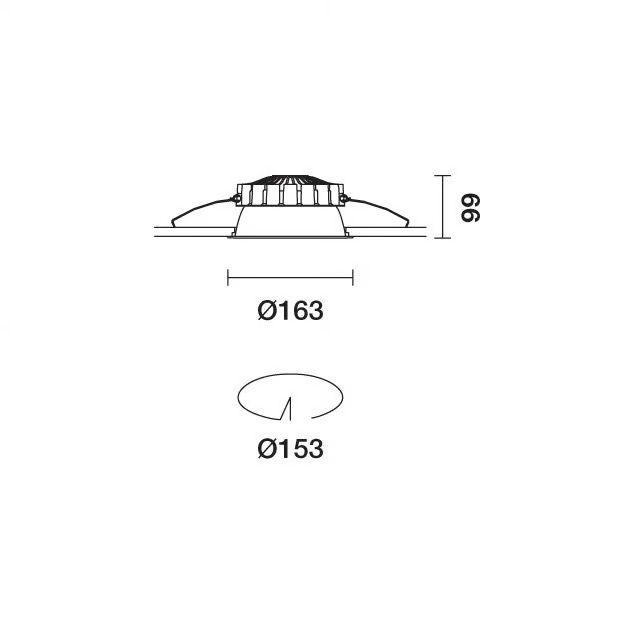

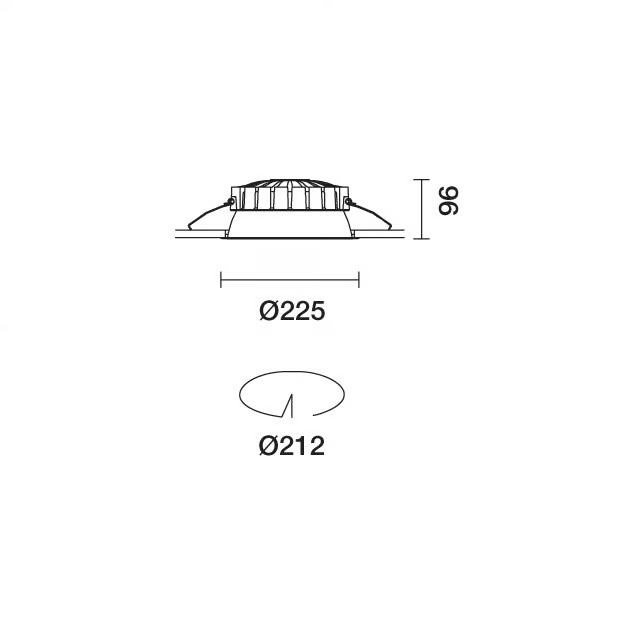

Overall dimensions
Information

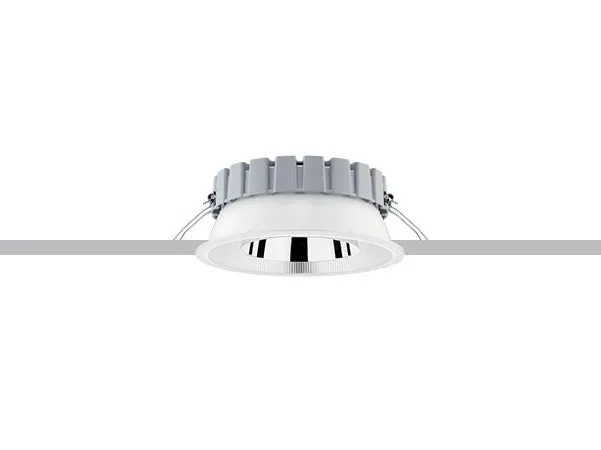

Easy Space UGR<19 and Easy Space UGR<19 MPO - Micro Prismatic Optic is a recessed spotlight for false ceiling
• Flush-mount installation on false ceilings 1-25 mm using steel springs.
• Grey painted die-cast aluminium dissipator.
• Reflector in prismatic thermoplastic material, complete with luminous flux recovery.
• UGR versions <19 L<3000 cd/mq.
• Wiring envisaged: On-Off - DALI inverter for Emergency lighting.
• The minimum compartment installation dimensions are listed in the instruction sheet.
• IP20.
• IP54 on the visible body of the mount after installation.
• When using the BLE - DALI interface, all DALI products can be managed via Bluetooth Low Energy (more information).
