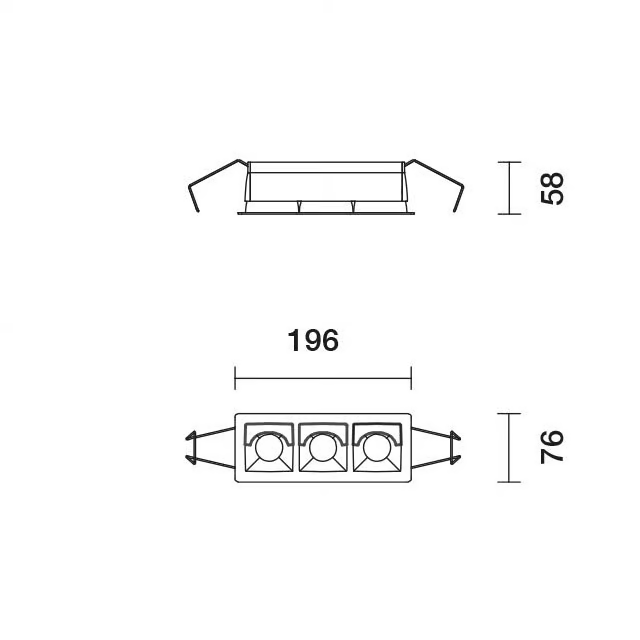

Overall dimensions
Information

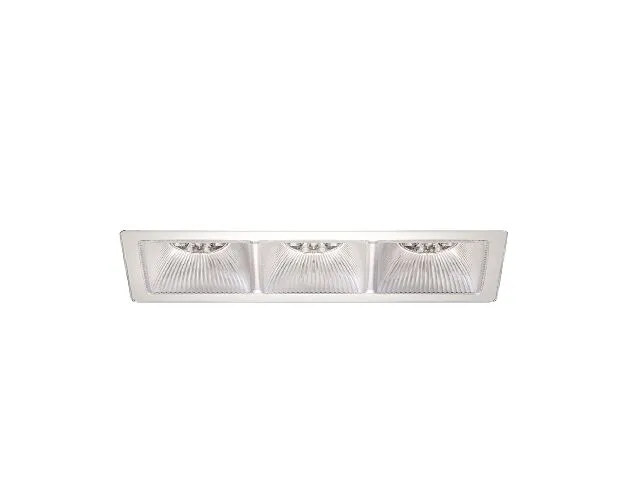

Crystal is a recessed luminaire consisting of a lamp device and emission raster. Version for high emission general lighting, UGR < 19 or with fixed Oval optics.
Product Details
- Main body made of extruded aluminium - anodised finish
- Cast zamak end caps - natural finish.
- Polycarbonate LED lamp support.
- Steel wire fixing springs.
- The optical system consists of a translucent textured methacrylate raster, created with a catadioptric system (patented Opti Beam Diamond optic) - with no galvanic treatments - combined with a gloss finish PET cover.
- The raster includes multiple lens diaphragms for LED lamps. The result generates a high performance light emission combined with a high energy yield.
