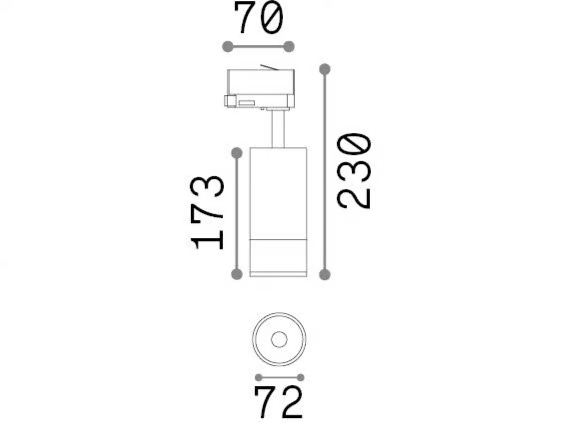

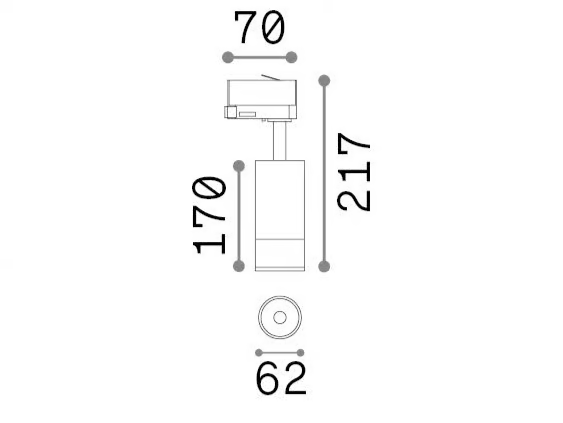

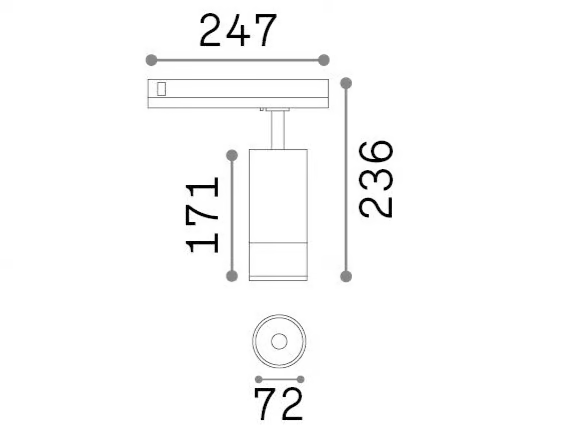

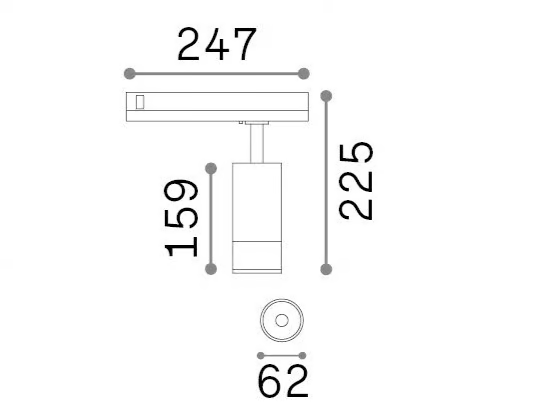

Overall dimensions
Information

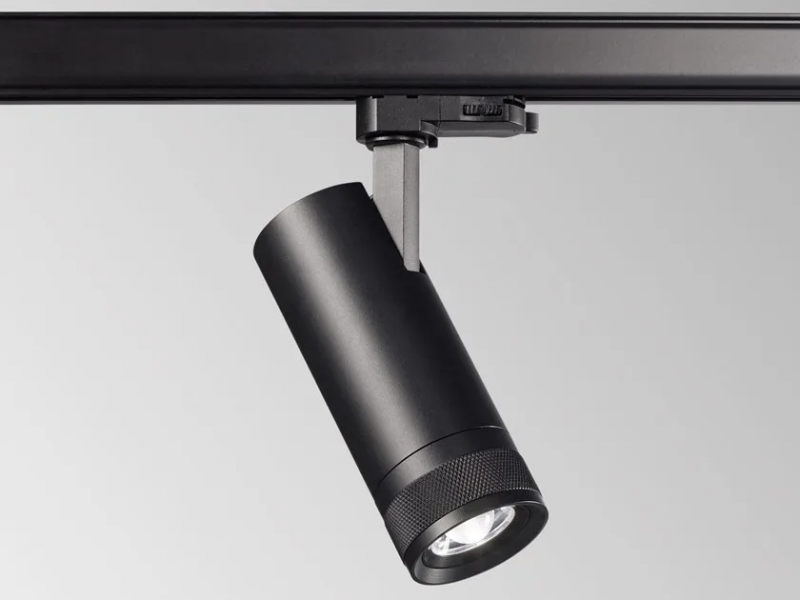

Eos is an extruded aluminum cylindrical tracklight with symmetric optic and variable opening beam from narrow to wide (20°-55°), suitable for three-phase track installation. White or black powder coating, 355° turning head and 90° adjustable, the power driver is included and located in the cylindrical body of the projector itself. Dimmable 1-10 or DALI version available. Light source with integrated COB LED technology, available with two different powers and one color temperature of 3000K and chromatic index ≥ 90
starting binning ≤3-Step MacAdam. Assembly, disassembly and adjustment of the beam opening without tools. IP20 protection
LED useful life 30.000 h L70B50. Ideal for installation in big rooms, where great flexibility and high color rendering is required, such as MUSEUM, COMMERCIAL and RETAIL spaces.
Insulation class: 1,2
Degree of protection: 20
Emission: Direct
Source: LED 15W / 25W
LED features: LED COB BRIDGELUX
Luminous source flux: 1500 / 3000 lm
Useful luminous flux: 1420 / 2720 lm
Color temperature (Kelvin): 3000 K
CRI :> 90
Control: On-Off, DALI, 1-10V
Structure material: Aluminum
Structure finish: White, Black, Gold
Diffuser material: Polycarbonate
Diffuser finish: Clear
Accessories not included: Single connection On-Off, Link On-Off or 1-10V/DALI profile
