Rotation cabin crl / 14 g series
ICB-73656
Перегородка для туалета
2020
Panel height mm. 1857; Overall dimensions mm. 0065; Door height from the ground mm. 0400; Cabin space mm. 1228 (width) x mm. 900 (depth); Foot height mm. 0150; Overall height from the ground mm. 2072.

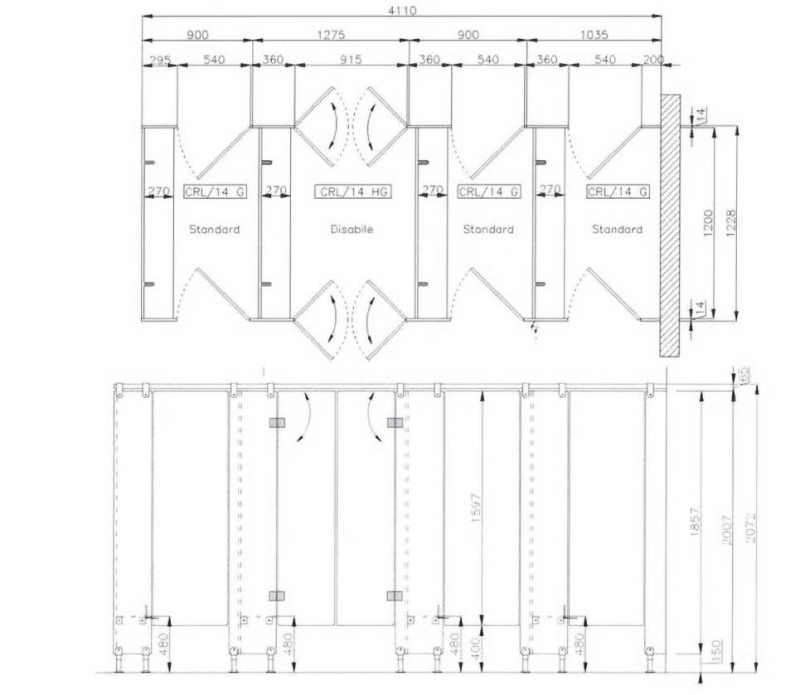

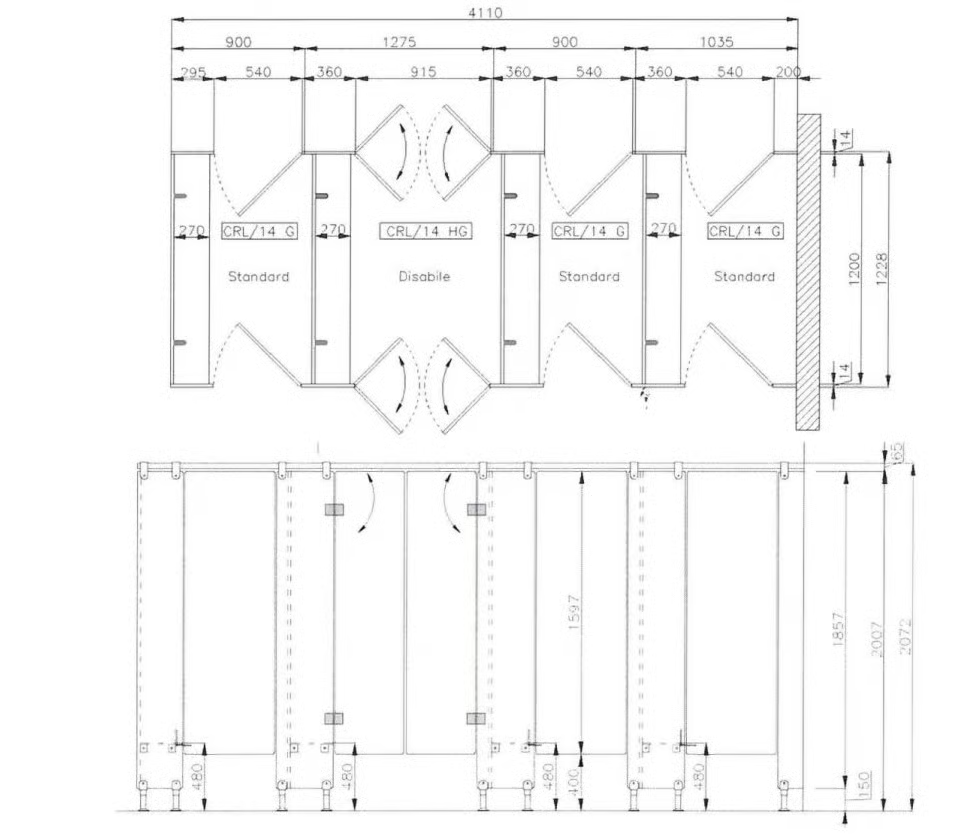

Overall dimensions
Information
CRL/14 cabins are finished with a scratchproof wax, with rounded edges and corners. Self-supporting on nylon feet they do not require the stainless steel frame, which is the only attackable element in swimming pools, spas and near the sea. The self-closing, self-lubricating hinges automatically close the door.
Construction details:
made from 14 mm thick HPL
HPL doors with stop profiles
self-closing, self-lubricating hinges in galvanised steel covered with grey nylon
14 mm thick laminate bench, with integrated simultaneous opening/closing system for the doors
top connection by means of 35 mm diameter silver anodised aluminium tube
joining clamps made entirely in fibreglass charged grey nylon 6
fixed to the floor by means of raised feet
