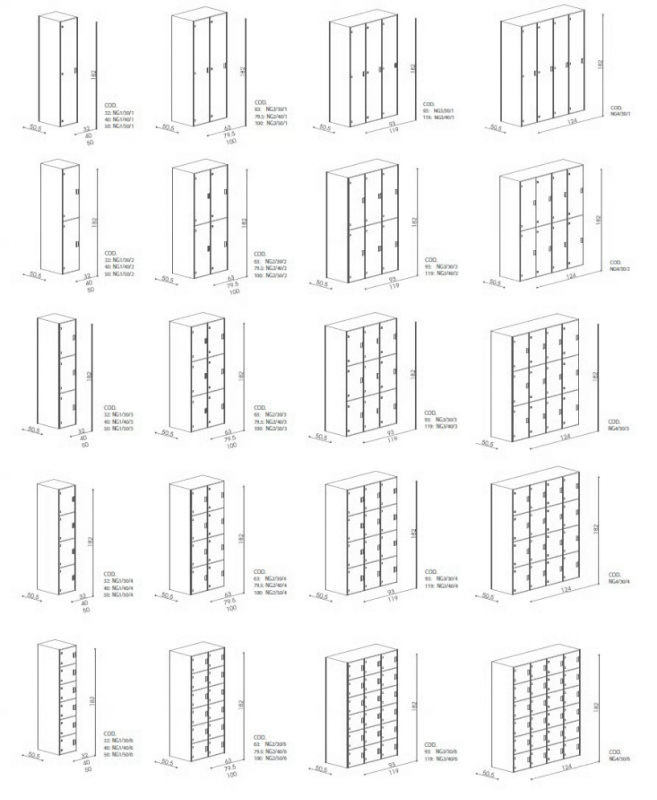

Overall dimensions
Information
For public areas in either companies or hospitals, Ges Group has designed these lockers with an inclined roof. Made entirely from HPL stratified laminate and assembled with special nylon joints, the “NG” series of lockers offers a wide range of sizes and modules. The technical, hygiene-sanitary qualities and finish of the laminate, combined with the versatile nylon components together form a modular construction open to many compositions. The strongpoint of “NG” series lockers is their elegance combined with enduring resistance to wear, they are rustproof, resistant to acid attack and impact. Each model is complete with lock and key and adjustable feet.
Construction details:
8 mm thick stratified laminate panels (back thickness 4 mm)
surfaces with scratchproof finish
rounded edges and corners
fibreglass charged grey nylon 6 joints
door in 8 mm thick stratified laminate and with a maximum opening of 120°
stratified laminate shelves
hinges in grey nylon 6 with stainless steel pin, self-lubricating
lock with nickel plated brass barrel, two keys, tilting handle or prepared for a padlock
safety number holder and lock cover plate in grey nylon 6
door numbering with PVC plate and pantographed number
flat or inclined roof
coat-hanger rod in 20 mm diameter anodised aluminium with 1 sliding clothes hook in grey nylon not-removable (just for the solution with height of 180 cm and 90 cm)
rear slits to enable thorough washing, drainage of the liquids and excellent ventilation without affecting the strength of the structure
fireproof
