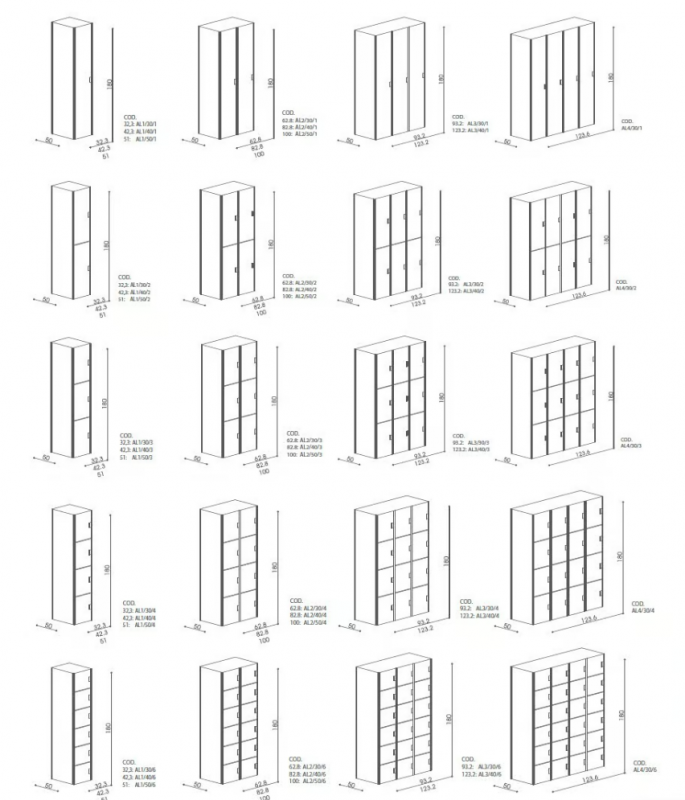

Overall dimensions
Information

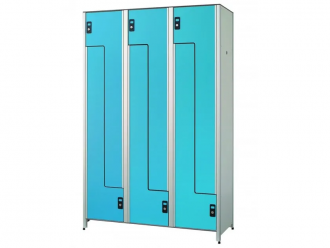

The strongpoint of Series “AL” lockers is their elegance combined with enduring resistance to wear. The changing room lockers are made from HPL stratified laminate, enhanced with anodised aluminium profiles and assembled with special joints. The strength and linear design of the details, the technical and mechanical properties of the laminate enable constructing both the bearing structure and the functional solutions in the system, for total modularity. All the materials are inalterable, rustproof, resistant to acid attack and impact.
Construction details:
top quality 6 mm thick stratified laminate panels
surfaces with scratchproof finish
rounded edges and corners
bottom and ceiling in 8 mm thick stratified laminate – joint formed of an anodised aluminium profile, with a minimum thickness of 1.5 mm
door in 8 mm thick stratified laminate
stratified laminate shelves
extruded anodised aluminium hinge running the entire height equipped with a 90° stopping device and nylon pins, self-lubricating
lock with nickel plated brass barrel, two keys, tilting handle or prepared for a padlock
safety number holder and lock cover plate in grey nylon 6
door numbering with PVC plate and pantographed number
flat or inclined roof
coat-hanger rod in 20 mm diameter anodised aluminium with 1 sliding clothes hook in nylon not-removable (just for the solution with height of 180 cm and 90 cm)
rear slits to enable thorough washing, drainage of the liquids and excellent ventilation without affecting the strength of the structure
fireproof
