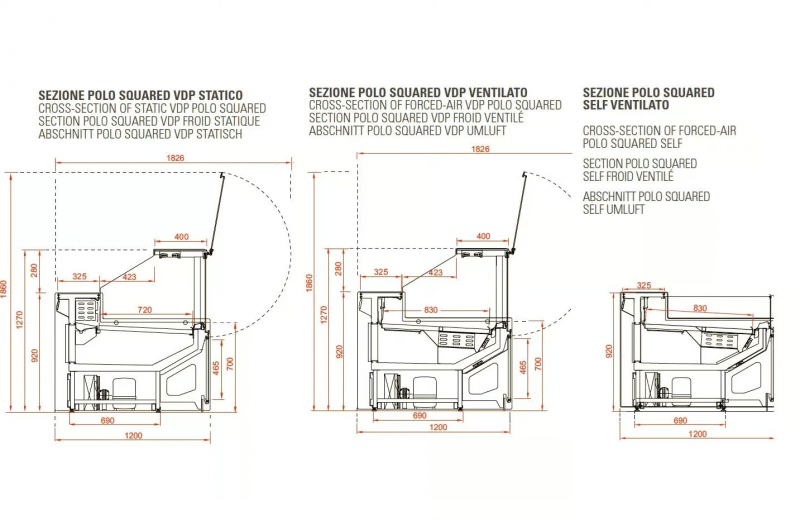

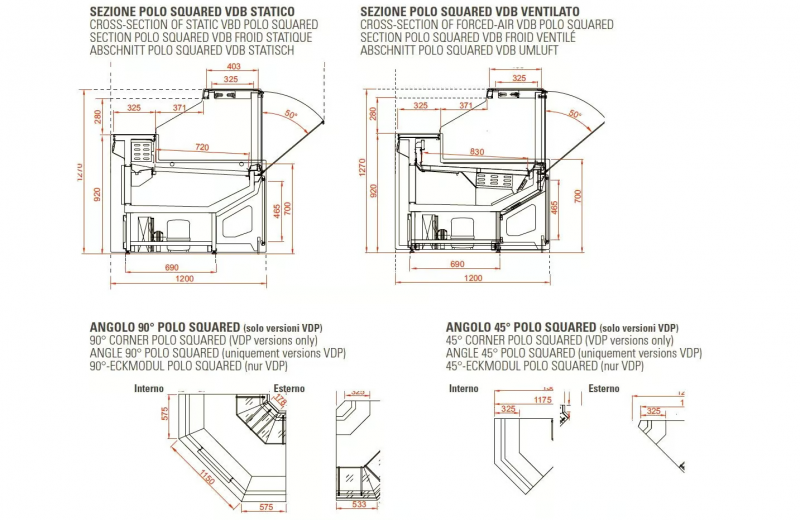

Overall dimensions
Information

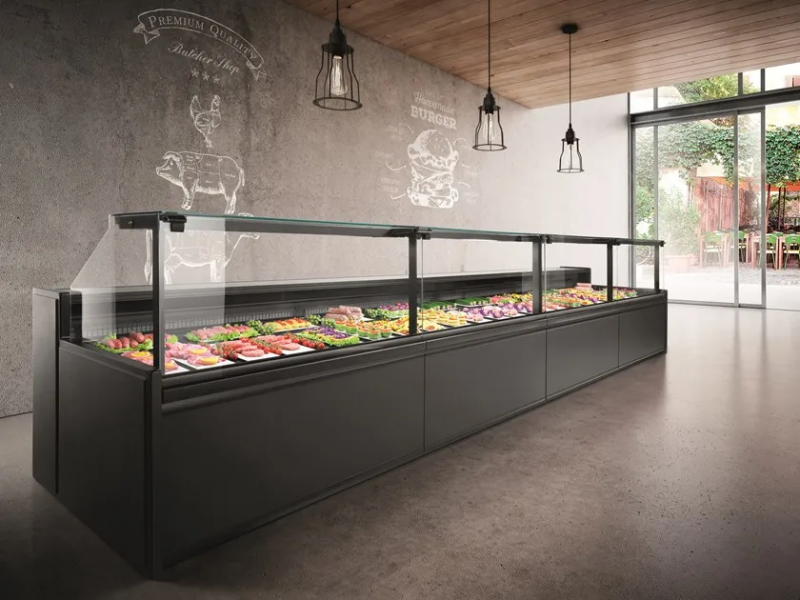

The Polo Squared counter is innovative in both design and functions. Designed for cold cuts, cheese and meat, it has a complete range of straight and corner, heated and ambient and forced-air or static refrigerated modules. It is available with total black or total white nishes, or customised to requirements in a vast range of optional finishes, colours and woods.
Polo Squared is available with forced-air or static refrigeration and with front opening upwards (VDP) or downwards (VDB). The display surface consists of shelves in AISI 304 stainless steel or sheet metal with food-approved plastic coating in black (or customised colour)
the worktop may also be either in AISI 304 stainless steel or black sheet metal (or customised colour). All straight and corner modules are designed for installation in-line with other units. Front glass demisting is by air flow with on-off control. The superstructure consists of aluminium uprights, in black in all-black and silver in all-white versions.
All refrigerated Polo Squared versions are fitted as standard with undercounter refrigerated compartments with magnetic doors. The control panel is complete with programmable digital thermostat, light and fan switches and Schuko single-phase socket for scales or cash register. The counter can be fitted with optional stainless steel paper dispenser sliding on runners to allow it to be moved when the refrigerated cupboard door is opened.
