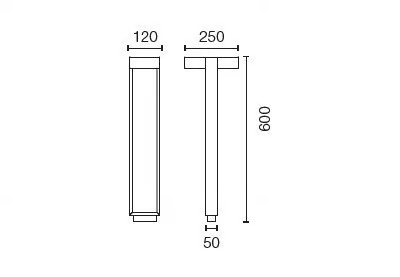

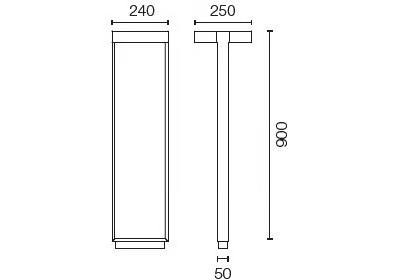

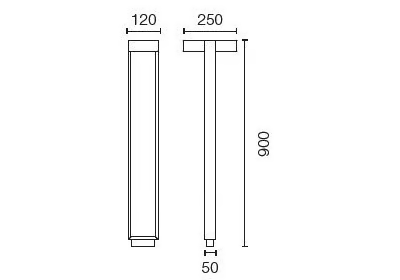

Overall dimensions
Information

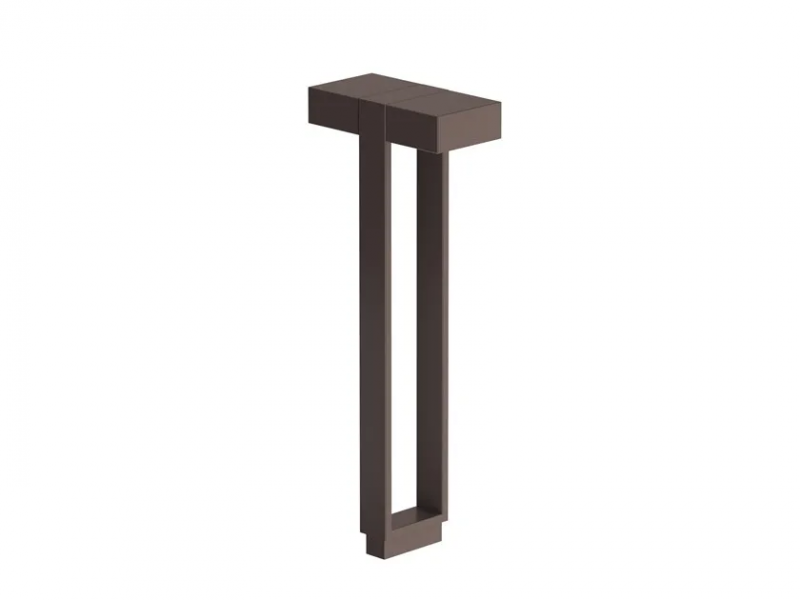

Mile Bollard is a collection of outdoor lighting units with a rigorous, minimal design and LED light source. May be combined with the wall versions in the same collection. Dual-direction bollards are available in two heights and two sizes based on the light source and required intensity. The rigid frame is made of extruded aluminium without visible screws, and the base raises it above the ground for quick, simple installation. Available in different finishes with a double layer of powder coating according to the QUALICOAT standard. The first layer of epoxy powder confers chemical and mechanical resistance. The second layer, a polyester powder finish, ensures resistance to UV rays and corrosive atmospheric agents. The painted surfaces are treated with alkiline and acid washes, rinsed with demineralized water, and subjected to chemical conversion treatment to protect against rust.
The anchoring hardware is made of AISI 316L stainless steel. The diffuser is made of transparent, UV-stabilized polycarbonate. The asymmetric reflecting screen is made of very pure aluminium that has been oxidized and shined. It holds the LED light source in a recessed position to reduce direct glare. The Bollard versions may be easily installed on any flooring on the ground with anchors, or with the dedicated anchoring plate accessory to completely integrate the base of the product with the pavement.
Finishes: white, grey, anthracite, black, deep brown, forest green, primer (only for the wall model)
Lighting source: Mid Power LED
Mile Bollard 1 600 / 900 Double
7,5W - 2x431 lm ≠FIXT 2x256 lm - 2700K/CRI 80 - 220-240V
7,5W - 2x448 lm ≠FIXT 2x266 lm - 3000K/CRI 80 - 220-240V
7,5W - 2x465 lm ≠FIXT 2x277 lm - 4000K/CRI 80 - 220-240V
Mile Bollard 2 900 Double
13,5W - 2x846 lm ≠FIXT 2x503 lm - 2700K/CRI 80 - 220-240V
13,5W - 2x879 lm ≠FIXT 2x523 lm - 3000K/CRI 80 - 220-240V
13,5W - 2x913 lm ≠FIXT 2x543 lm - 4000K/CRI 80 - 220-240V
