Information
Teca B has a clean and elegant style, deliberately minimalistic and essential.
The horizontal bottle arrangement blends in with the scene.It is an item with unmistakable design that will make any setting unique.
The built-in installation gives it a “seamless” look that is a viable alternative to traditional freestanding cellars.
It is possible to request custom internal and external parts in black finish.
Teca features a wooden-clad aluminum structure that comes in different colors and finishes. This design choice allows for easy replacement both of glass parts and the wood frame. Teca is available with reduced depth (H) with static condenser installed in the back, and standard depth (M ) equipped with the innovative central refrigeration system with the cooling coil in the middle of the cabinet.
Teca is made of two separate elements and references:
• Unit with aluminium structure
• MDF/wood decorative frame.
The frame is mounted with a snap-on button system and therefore easy to replace.
Specifications
Specifications
Aluminium structure
HPL / MDF frame
Sliding doors in double glass – anti-UV protection
Lock with key
Sides and top panels polyurethane foam
Aluminium interior
Cold white daylight LED (3000 K - 30 led/mt - 1,12 W / mt - 130 lumen / mt)
Inverter compressor
Static and ventilated refrigeration
Digital temperature controller
Automatic defrosting and automatic evaporation system
Anti-vibration system
Heated rails
Rechargeable active carbon filter
Temperature: +5 / +18 °C

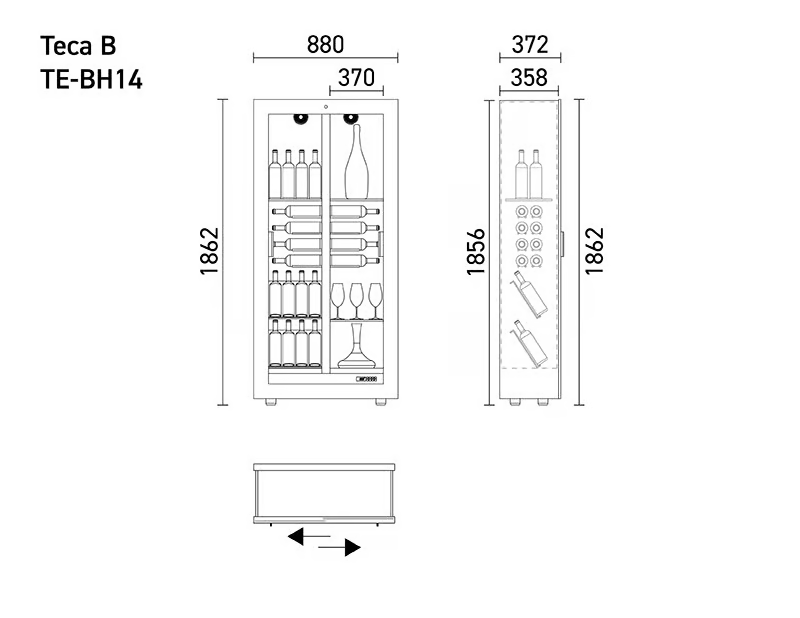

TE-BH14
Noise level: 37 db
Voltage: 230 / 50-60 Hz
Absorption: 150 Watt
kWh/annum: 274
Dimensions including packing on pallet: 1000 x 800 x 2060 mm
Net weight: 97 Kg
Weight with packing on pallet: 116 Kg
Volume with packaging on pallet: 1,7

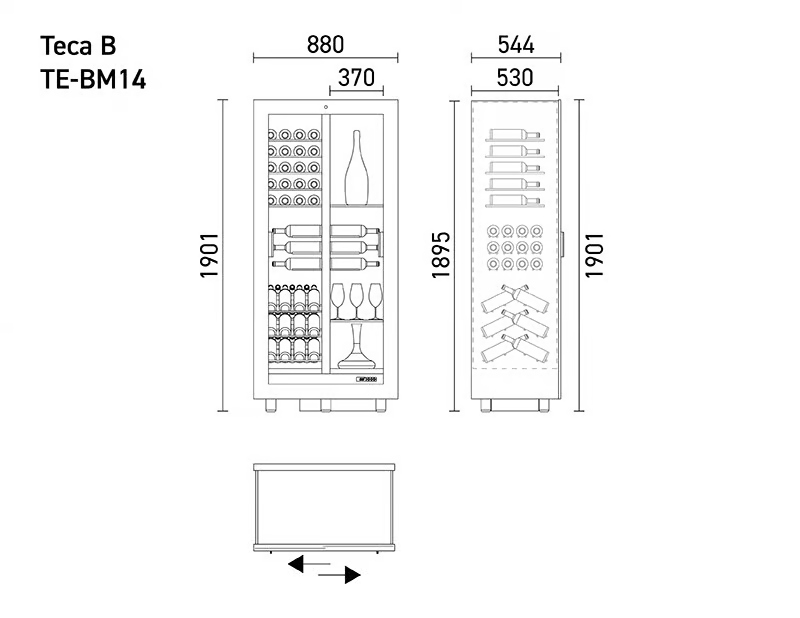

TE-BM14
Noise level: 39 db
Voltage: 230 / 50-60 Hz
Absorption: 424 Watt
kWh/annum: 452
Dimensions including packing on pallet: 1000 x 800 x 2060 mm
Net weight: 114 Kg
Weight with packing on pallet: 117 Kg
Volume with packaging on pallet: 1,7
Sophisticated and ground-breaking, Expo’s climate wine cabinet collection Wine Living is a revolution in the enticing world of wine enthusiasts. Unique by concept and design, through the years they have become a symbol destined to become timeless, precious icons.
The Wine Living collection is designed by Massimo della Marta, designer and wine enthusiast, inspired by a brand new vision.
The wine cabinet is no longer placed in the kitchen
it is now integrated in the living area – a space devoted to relax, conviviality and sociability. The designer’s vision was a winner, having foreseen future trends and outlining what was to become a very own brand identity.
For the first time, climate wine cellars, from functional home appliances, become sophisticated pieces of furniture that gracefully and elegantly integrate in any ambience. World patents such as Quadro Vino, Teca, and the central cooling system, have confirmed the value of the brand’s know-how in wine design and thermodynamics applied to wine conservation.
