Information

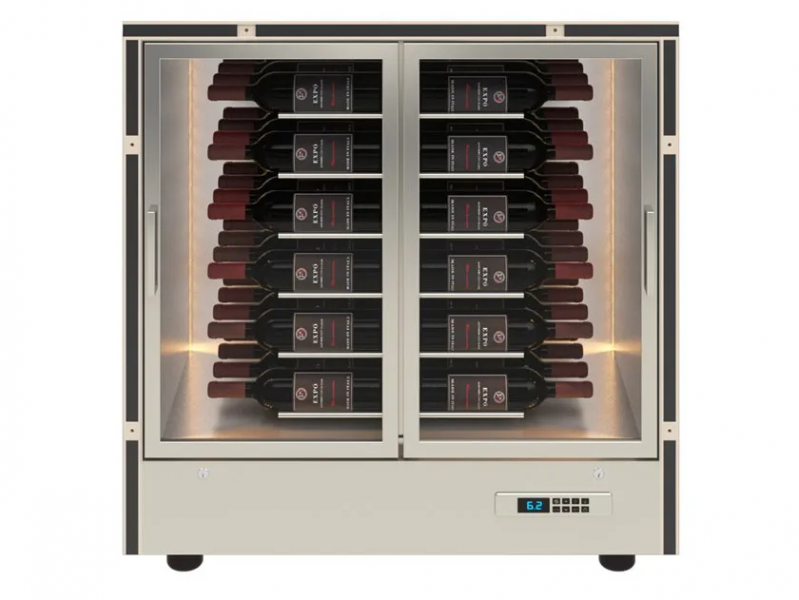

Mod 20 is a wine cabinet. A rich array of colors and finishes allows you to create unique and exclusive settings. A tangible response to the ever increasing need for customization. A new paradigm in separating environments can be embodied by the transparence of the wine cellar. Modular system – two or more different models of cabinet can be combined together.
The composition has to be fitted with frames or linear cladding. The reduced depth version (H) may be included in Wine Living® furniture both with frame and flush installation.
Specifications
Aluminium structure
Hinged doors with double glazing – UV protection
Lock with key
Sides and top panels polyurethane foam
Aluminium interior
Cold white daylight LED (3000 K - 30 led/mt - 1,12 W / mt - 130 lumen / mt)
Inverter compressor
Static and ventilated refrigeration
Digital temperature controller
Automatic defrosting and automatic evaporation system
Anti-vibration system
Rechargeable active carbon filter
Temperature: +5 / +18 °C
MD-H20
Number of bottles: 24, max ø 93 mm, H 370 mm
Noise level: 38 db
Voltage: 230 / 50-60 Hz
Absorption: 165 Watt
kWh/annum: 198
Dimensions including packing on pallet: 1000 x 800 x 1120 mm
Net weight: 59 Kg
Weight with packing on pallet: 77 Kg
Volume with packaging on pallet: 0,9

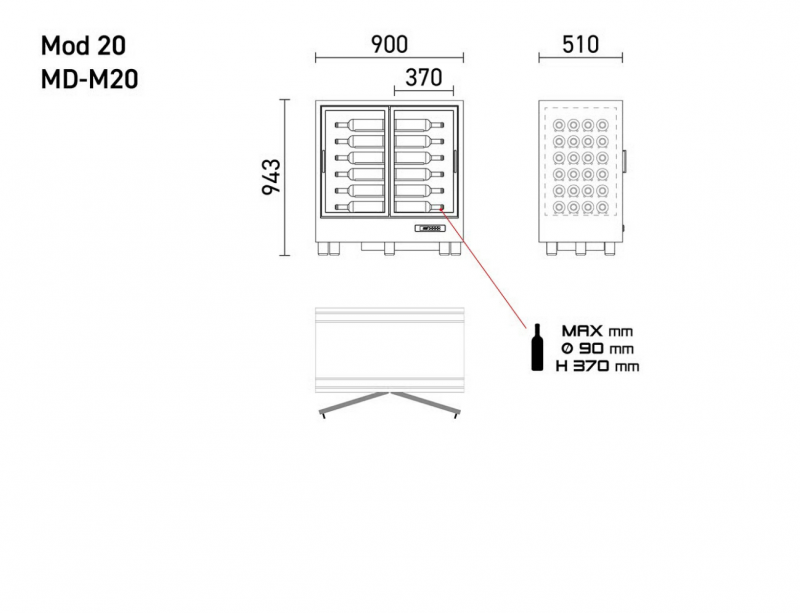

MD-M20
Number of bottles: 48, max ø 90 mm, H 370 mm
Noise level: 39 db
Voltage: 230 / 50-60 Hz
Absorption: 400 Watt
kWh/annum: 256
Dimensions including packing on pallet: 1000 x 800 x 1120 mm
Net weight: 69 Kg
Weight with packing on pallet: 90 Kg
Volume with packaging on pallet: 0,9
MD-C20
Number of bottles: 48, max ø 90 mm, H 370 mm
Noise level: 39 db
Voltage: 230 / 50-60 Hz
Absorption: 400 Watt
kWh/annum: 268
Dimensions including packing on pallet: 1000 x 800 x 1120 mm
Net weight: 79 Kg
Weight with packing on pallet: 100 Kg
Volume with packaging on pallet: 0,9
Sophisticated and ground-breaking, Expo’s climate wine cabinet collection Wine Living is a revolution in the enticing world of wine enthusiasts. Unique by concept and design, through the years they have become a symbol destined to become timeless, precious icons.
The Wine Living collection is designed by Massimo della Marta, designer and wine enthusiast, inspired by a brand new vision.
The wine cabinet is no longer placed in the kitchen
it is now integrated in the living area – a space devoted to relax, conviviality and sociability. The designer’s vision was a winner, having foreseen future trends and outlining what was to become a very own brand identity.
For the first time, climate wine cellars, from functional home appliances, become sophisticated pieces of furniture that gracefully and elegantly integrate in any ambience. World patents such as Quadro Vino, Teca, and the central cooling system, have confirmed the value of the brand’s know-how in wine design and thermodynamics applied to wine conservation.
