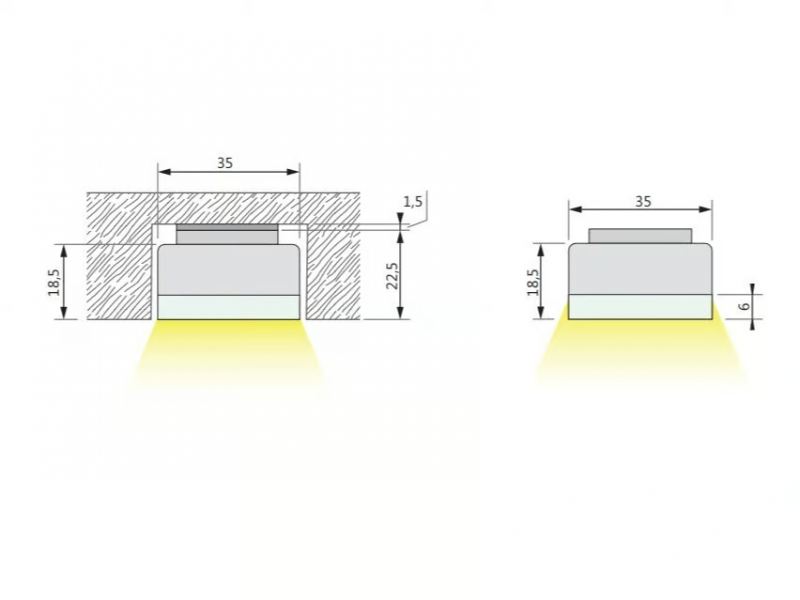

Overall dimensions
Information

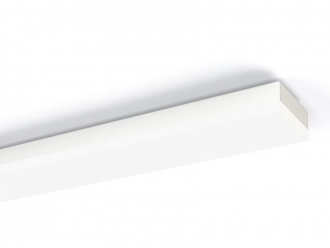

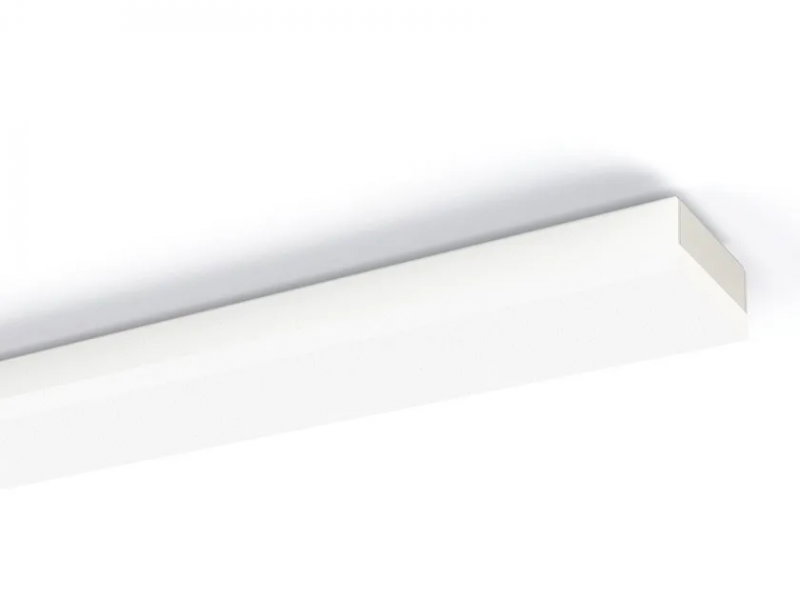

Slot is a linear lighting profile made to measure, ideal for lighting furnishings in the retail sector.
Specifications
Weight 527 g
IP rating IP20
Electrical specifications
Power supply unit Remote
Supply voltage 24 Vdc
Total power 18 W/m
Light source
Type of source LED
Color temperature 2700 K / 3000 K / 4000 K
Nominal LED flux 2010 lm / 2120 lm / 2210 lm
LED module efficiency 112 lm/W 118 lm/W 123 lm/W
Efficiency class LED E
Duration life L80/ B10 (25 °C) > 50.000 h
Device
Color temperature 2700 K / 3000 K / 4000 K
Light flux 1280 lm / 1334 lm / 1366 lm
LED lamp efficiency 71 lm/W 74 lm/W 75 lm/W
Saturated red colour index (R9) >90
Colour rendering index (Ra) 95
SDCM 3
Optical system characteristics
Material lens Polycarbonate
