Overall dimensions
Information

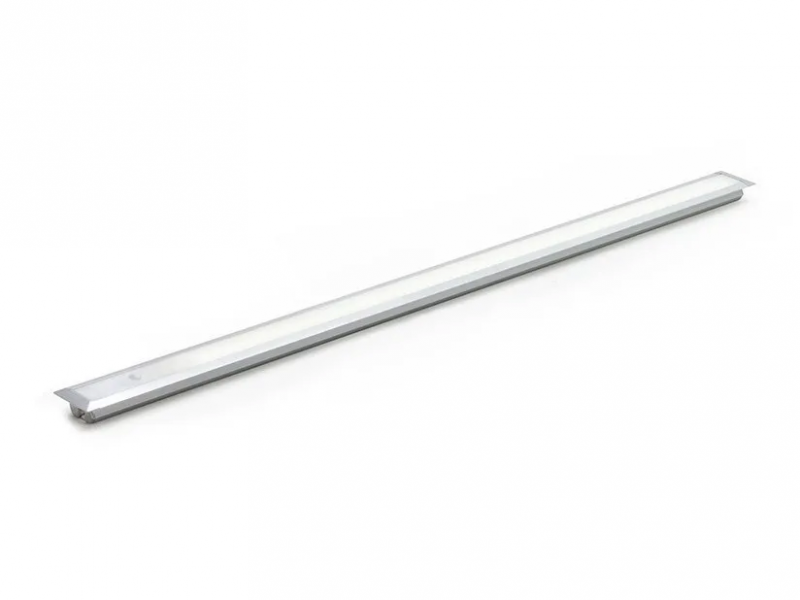

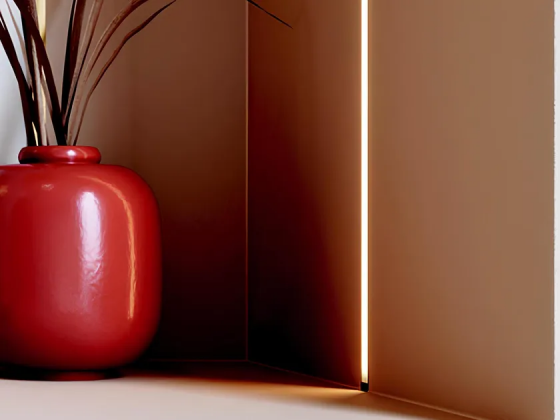

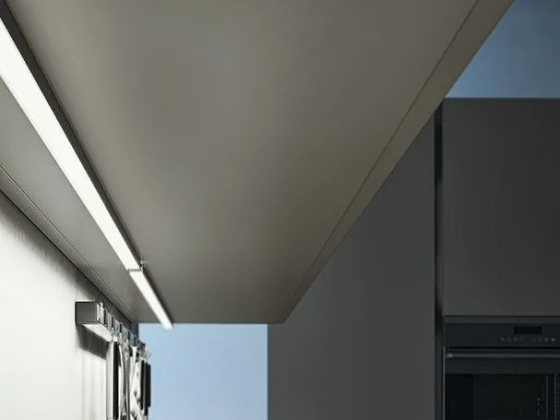

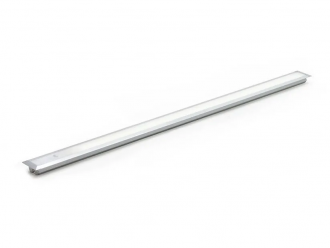

LEDYE HE is an aluminium LED profile designed for recessed installation either using a blind or a through milled groove that is only 12mm deep. LEDYE HE integrates the new HE L... with high linear density that cancels the light-emitting diode dotted effect. LEDYE HE is available in two configurations: with dimmable TouchLed switch, ideal under cabinets or shelves, and with presence sensor for application inside cabinets or wardrobes.
All the models of LEDYE are equipped with steel clips with lateral pressure that make extremely practical the installation of the luminaires. These clips allow to quickly install the profile with no need for glue. The system also means the profile can easily be removed from the milled groove if necessary, also when the luminaire is already fixed.
Materials: aluminium, polycarbonate, thermoplastic polymers
Finishes: aluminium
Lighting source: HE LED module (120 LED/m), UHE LED module (240 LED/m) - on request
Wiring: 2000mm
Application type: under cabinet, under shelf
Installation: recessed
