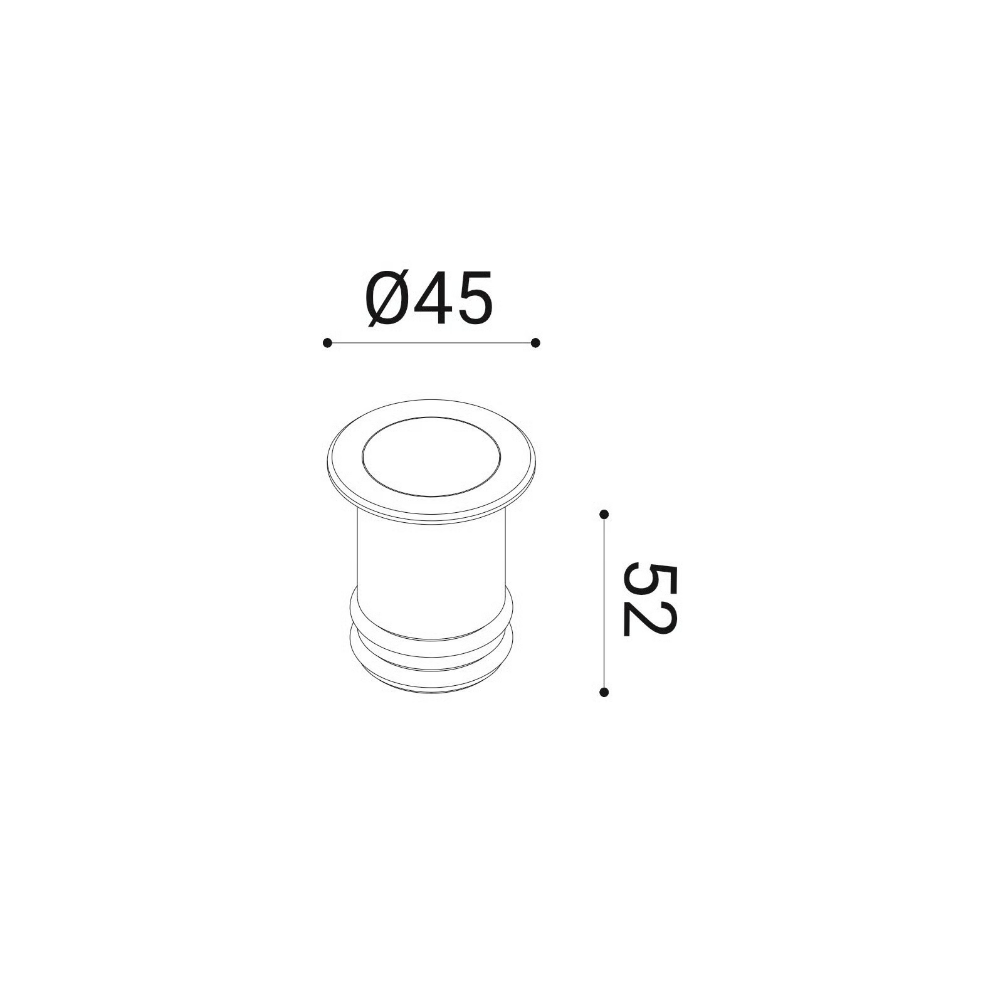

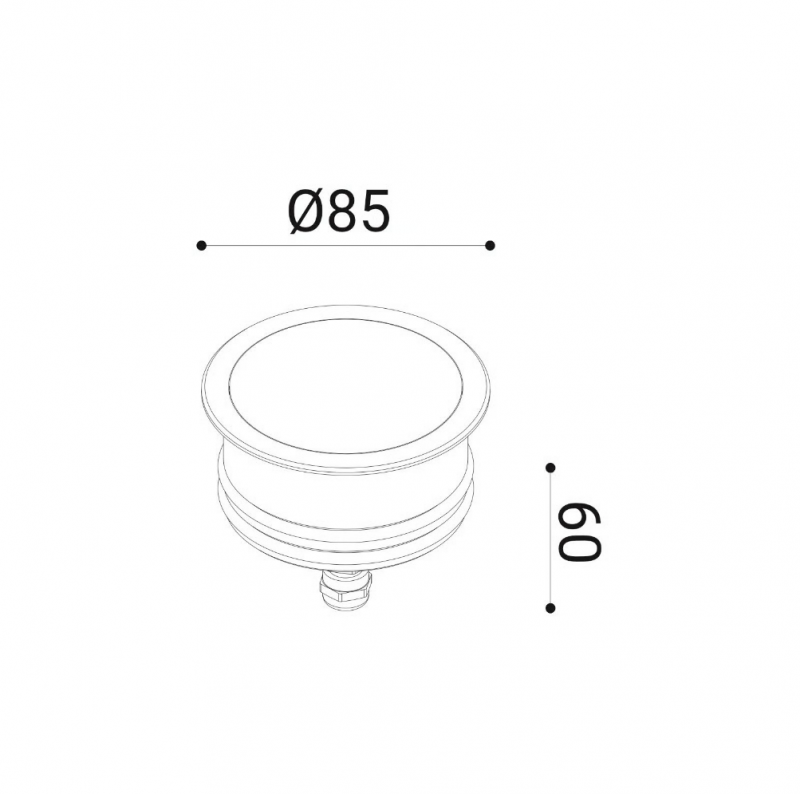

Overall dimensions
Information
Ground recessed or wall recessed available in three sizes (ø45mm - ø65mm – ø85mm), turned aluminium in
Natural colour structure aluminium Honeycomb.
Tempered silkscreened transparent glass mechanically fixed with silicon glue. 24Vdc supply, remote power supply to be separately ordered and 220-240V model only for ø85.
Power ø45mm 24V ( 2W led 3W e ) beam 36° ø65mm 24V (5,8W led 6,3W e ) beam 52° ø85mm 24V (6,5W e,led ) diffused ø85mm 6,88W@230V all fixtures come with multipoles rubber outgoing piece of cable L.200mm suitable for external use to be used for connection.
Light source Power Led CRI≥80 3000K/ 4000K
Mid Power ( only for ø85 24dc)
CLASS III, I(230V)
IP 67
plastic boxes (9001,9002,9003) mandatory for installation, IP connectors (9004,9005) remote power supplies to be separately ordered.
