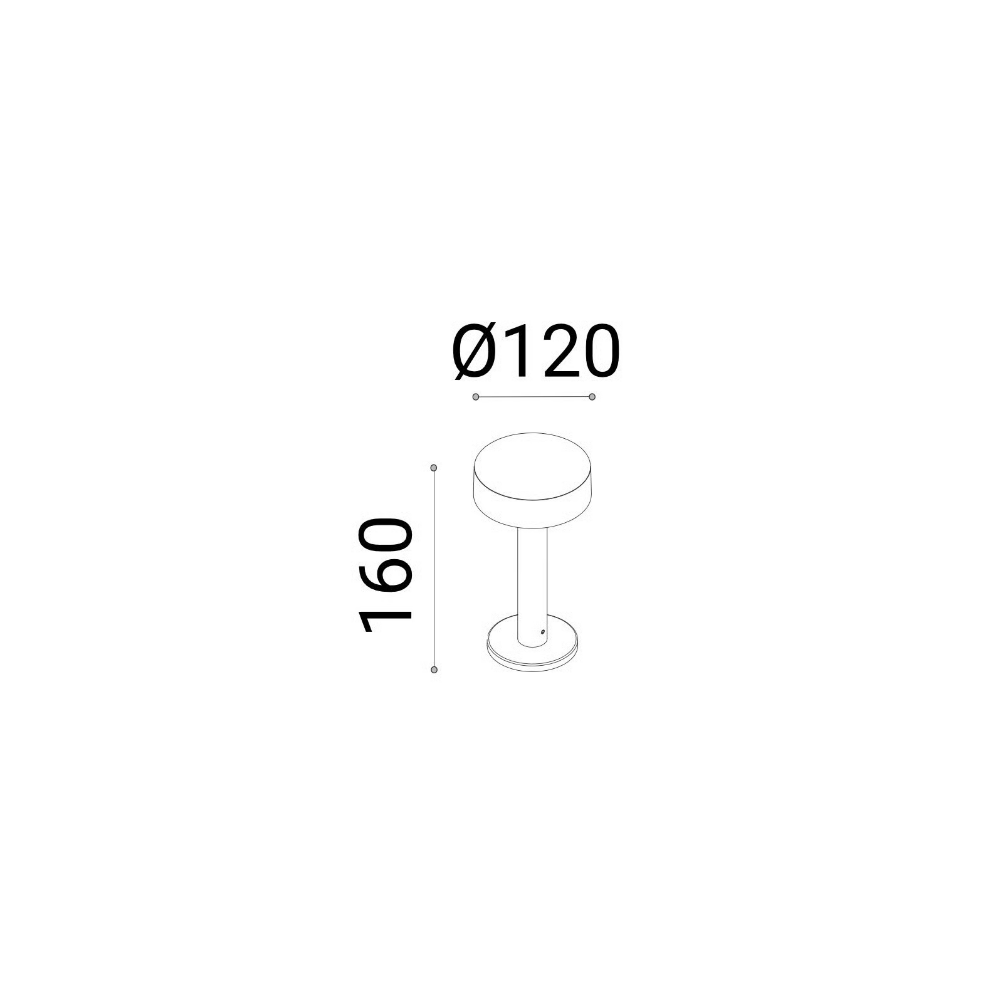

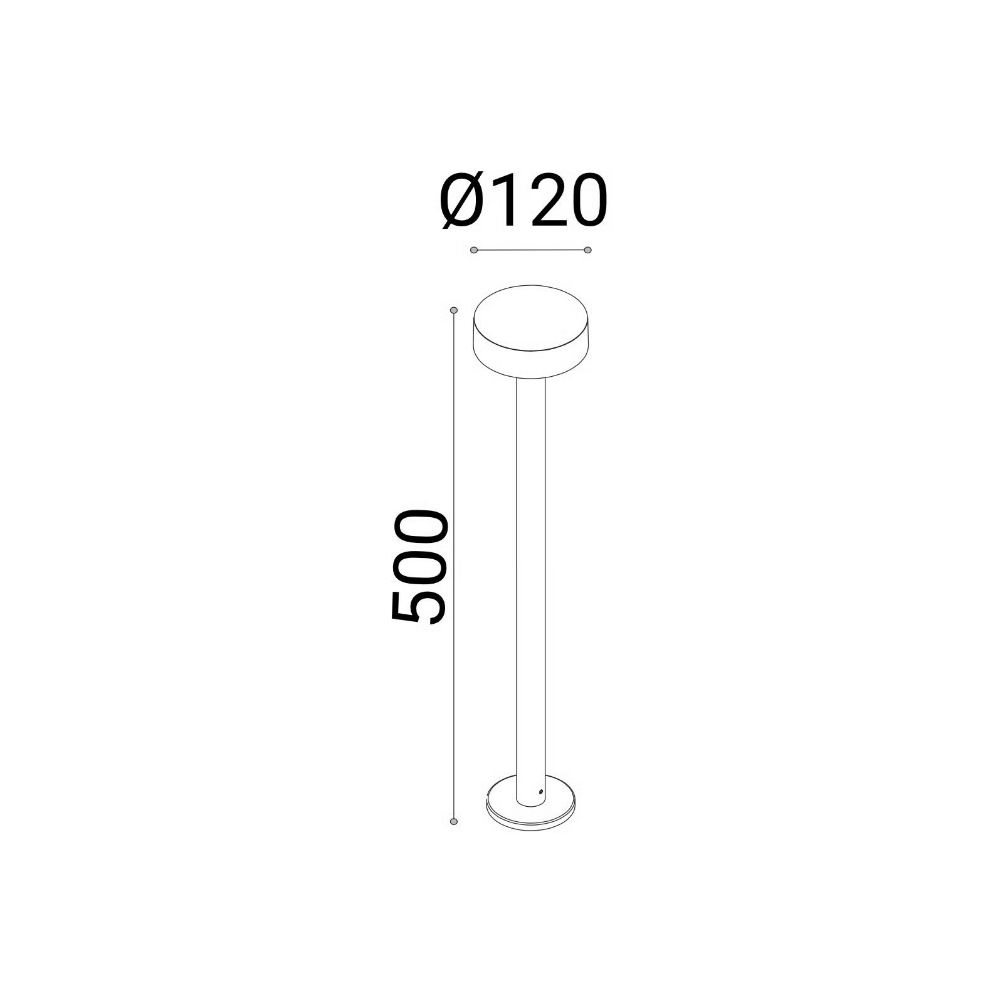

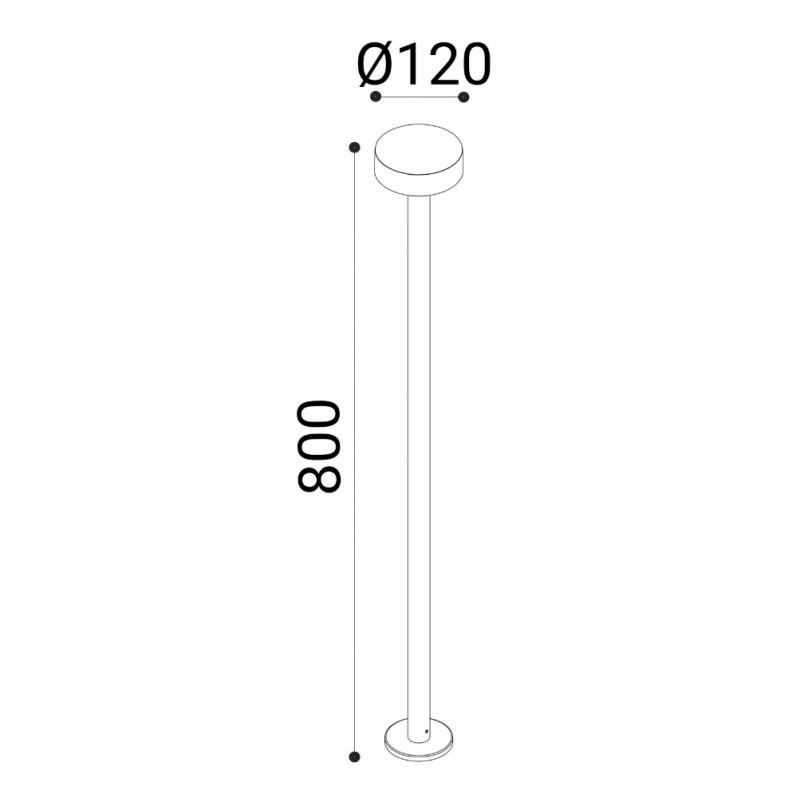

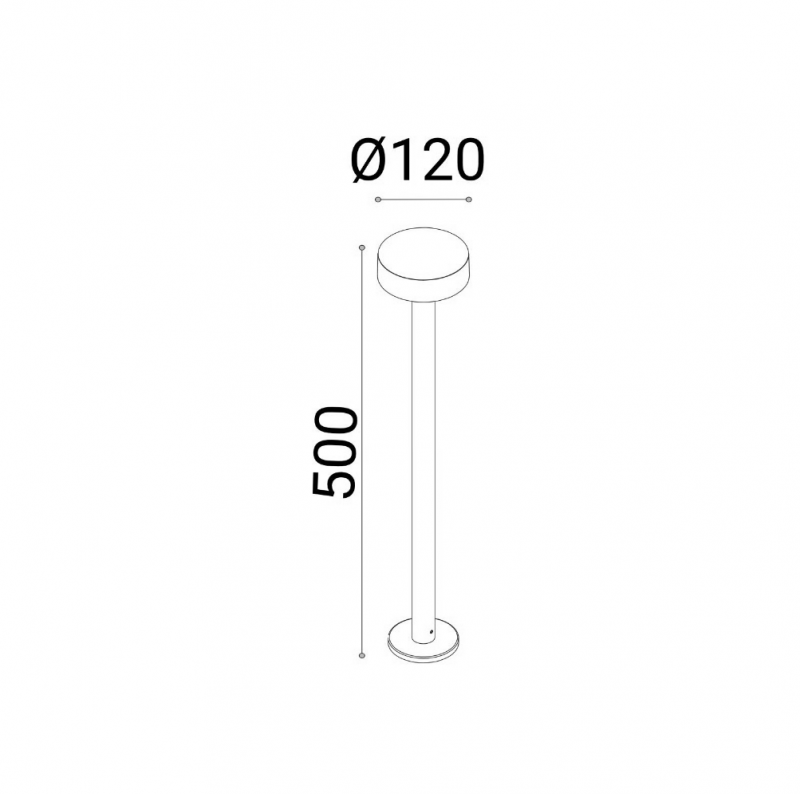

Overall dimensions
Information

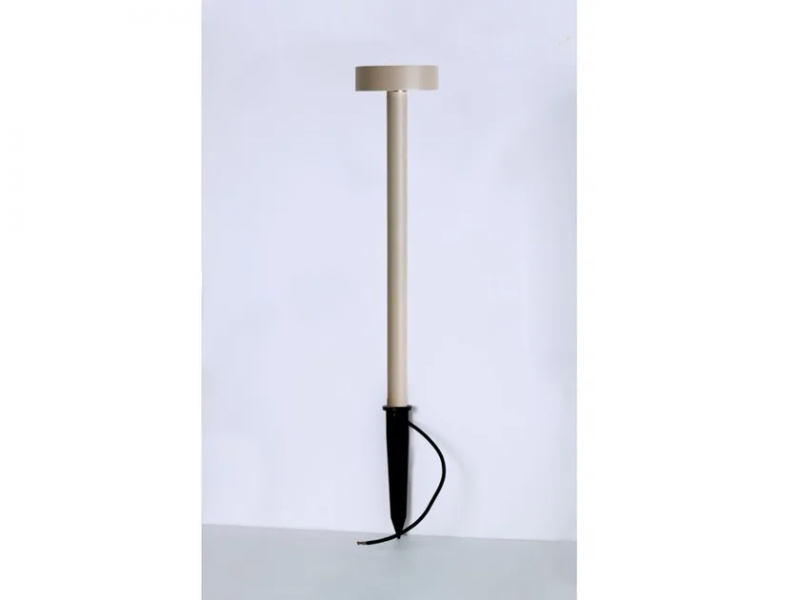

Bollard for ground installation. Head section made of EN47100 die-cast aluminium , fiberglass reinforced plastic spike and three sizes pole of extruded aluminium H.160mm, H.500mm, H.800mm.
Powder polyester coated on treated layer to prevent corrosion, available in four standard colours.
Tempered transparent glass fixed with silicon glue.
Integrated Power Supply 220- 240V, phase cut dimming light source MID Power Led, CRI ≥80, 3000K/4000K power(10W e @230V) 360° downward emission
IP connector kit included
CLASS I
IP65
Emission 180° shield (9045), IP connectors (9004) (9005) to be separately ordered.
