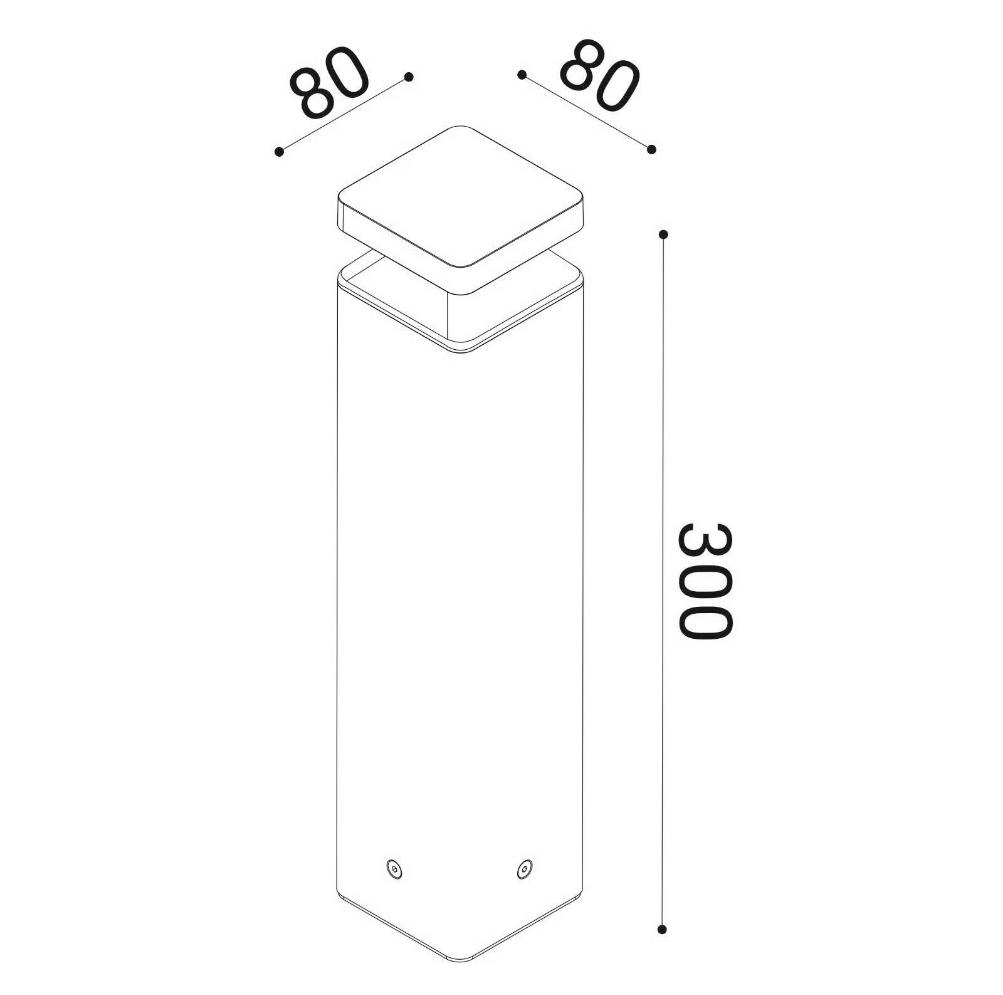

Overall dimensions
Information

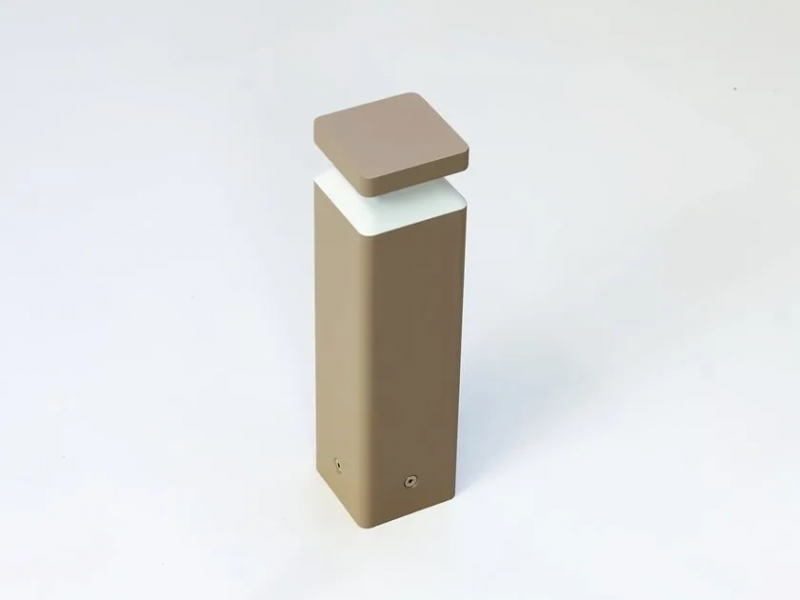

Bollard for ground or solid surface installation. Head section and conical reflectors made of EN47100 die-cast aluminium and two sizes pole of extruded aluminium H.160mm, H.300mm. Powder polyester coated on treated layer to prevent corrosion, available in four standard colours, reflectors only white or black painted. inox fixing plate included.
PMMA satin diffuser mechanically fixed with silicon glue.
Integrated Power Supply 220- 240V . light source (6,2W led ) MID Power Led , CRI ≥80, 3000K/ 4000K power (8,5W e )
360° downward emission
IP connector kit included
CLASS I
IP65
For ground installation We suggest the use of Anchor bolts (9041)
