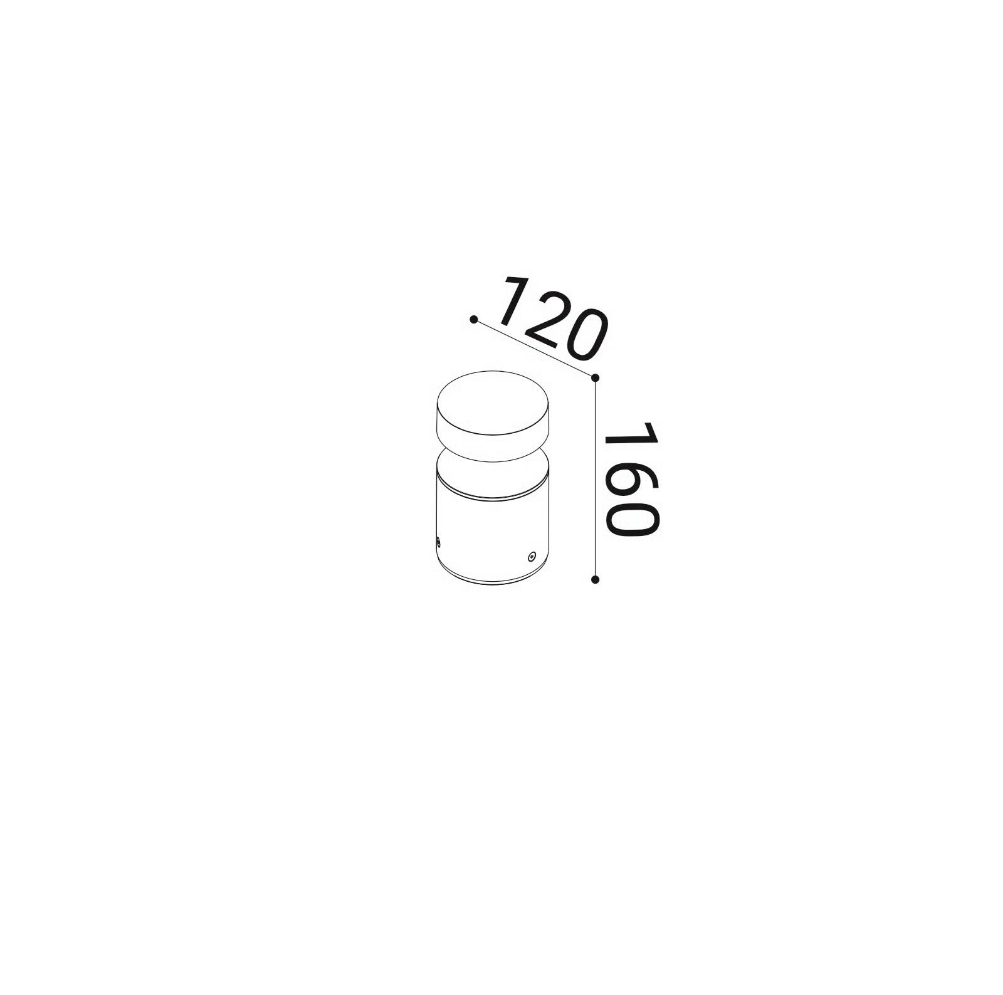

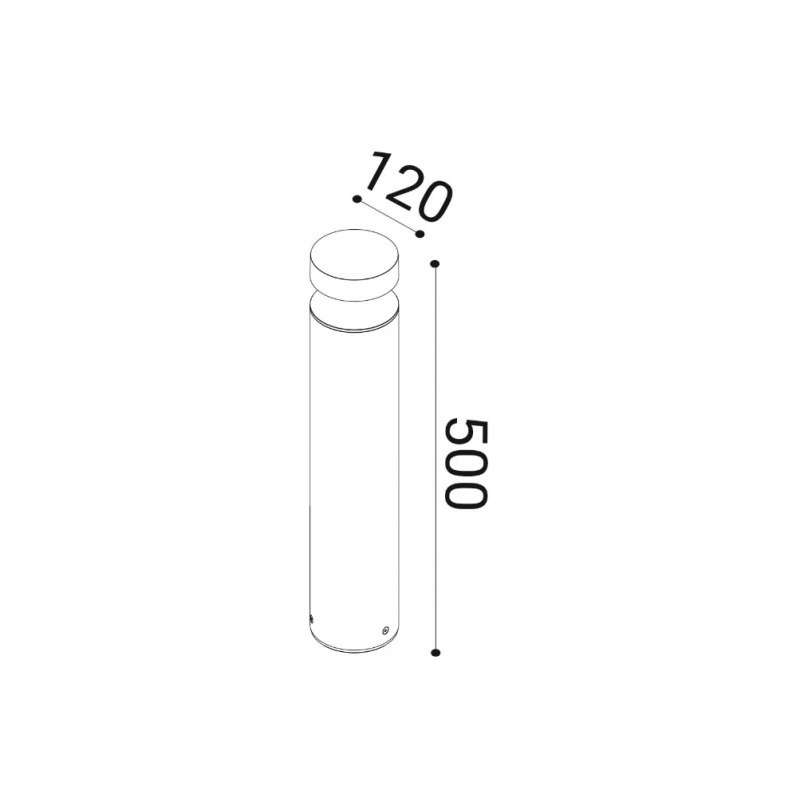

Overall dimensions
Information

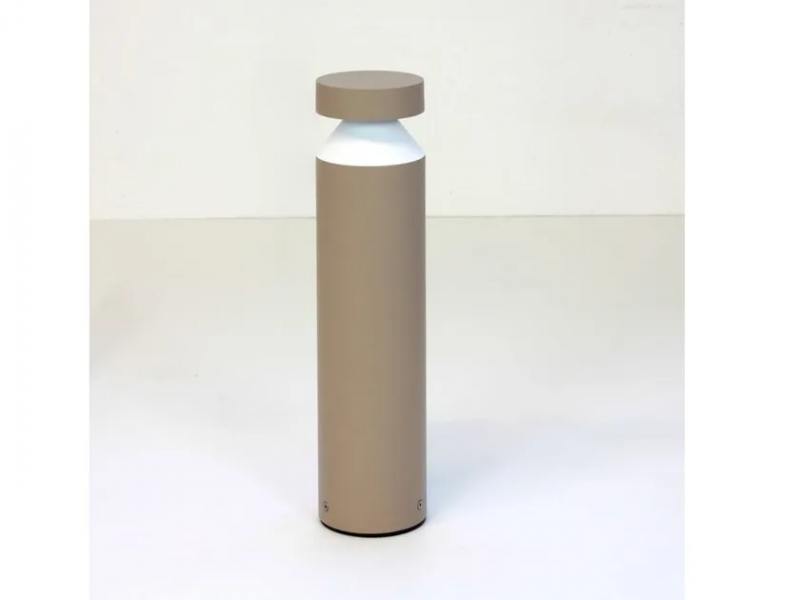

Bollard for ground or solid surface installation. Head section and conical reflectors made of EN47100 die-cast aluminium and 3 sizes pole of extruded aluminium H.160mm, H.500mm, H.800mm.
Fiberglass reinforced plastic fixing base included. Transparent tempered glass mechanically fixed with silicon glue.
Supply mains 220-240V phase cut dimmable light source Mid Power Led 10W e @230V , CRI ≥80, 3000K/4000K h.160mm supplied with IP68 connector.
360° downward emission
CLASS I
IP65
Accessories IP connector (9036) to grant protection, 180° shield ( 9044)to be separately ordered.
For ground installation We suggest the use of Anchor bolts(9009).
