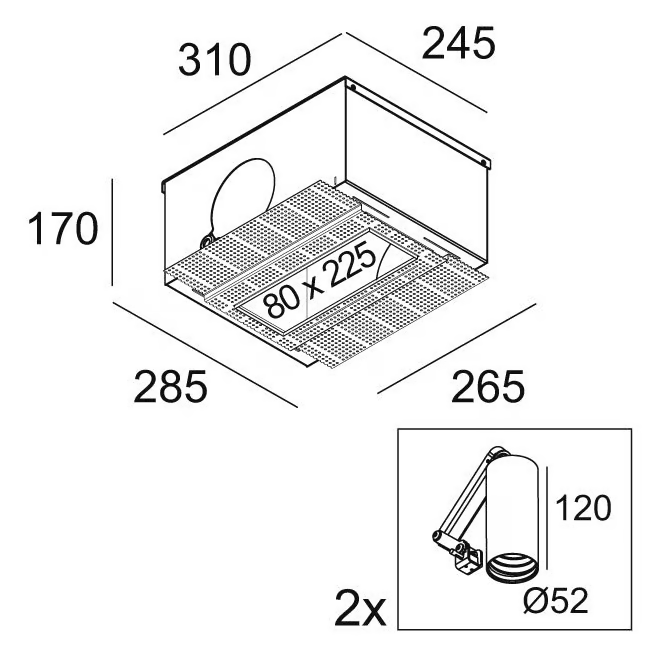

Overall dimensions
Information

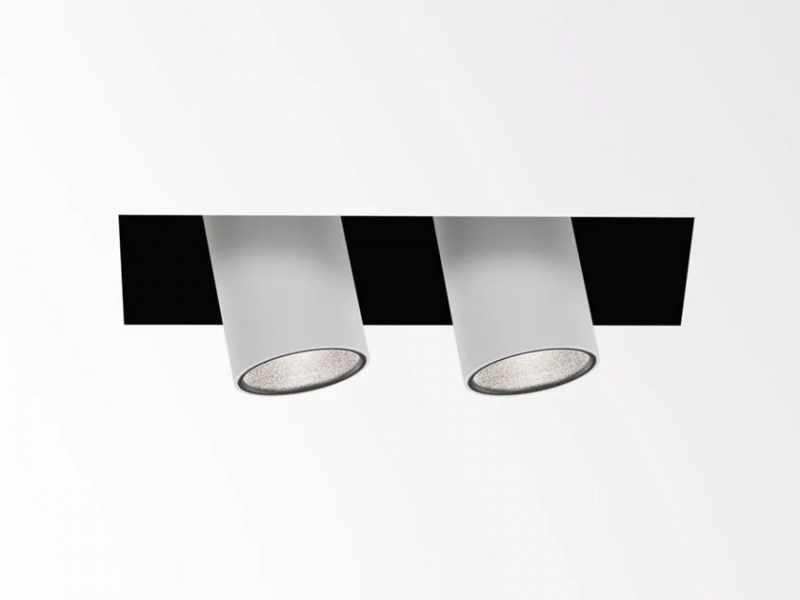

Splitbox is a LED multiple adjustable spotlight., available in two colrs: black or black with grey.
Technical characteristics
Adjustable
92720/92745: 2 x (LED 5,8-12,4W / CRI>90 / 2700K / 753-1403lm) - 2 x Reflector FL-20°/WFL-45°
93020/93045: 2 x (LED 5,8-12,4W / CRI>90 / 3000K / 787-1467lm) - 2 x Reflector FL-20°/WFL-45°
Soft 93020/93045: 2 x (LED 9W / CRI>90 / 3000-1800K / 945lm) - 2 x Reflector FL-20°/WFL-45°
96520/96545: 2 x (LED 9W / CRI>90 / 2700-6500K / 1087lm) - 2 x Reflector FL-20°/WFL-45°
92720/92745: 3 x (LED 5,8-12,4W / CRI>90 / 2700K / 753-1403lm) - 3 x Reflector FL-20°/WFL-45°
93020/93045: 3 x (LED 5,8-12,4W / CRI>90 / 3000K / 787-1467lm) - 3 x Reflector FL-20°/WFL-45°
Soft 93020/93045: 3 x (LED 9W / CRI>90 / 3000-1800K / 945lm) - 3 x Reflector FL-20°/WFL-45°
96520/96545: 2 x (LED 9W / CRI>90 / 2700-6500K / 1087lm) - 3 x Reflector FL-20°/WFL-45°
IP20
Energy Class: E
The Splitbox is a trimless integrated lighting system, with the full flexibility of surface mounted lighting. A black minimalistic cove of 80mm wide and 225mm or 315mm long can be equipped with one, two or three highly flexible spot modules. These Spy modules can remain encapsulated in the ceiling, or emerge in its entirety and be tilted 90° while rotate 355°, allowing focused illumination in one swift move. The black background inside the cove creates an illusion of unendingness around the light spots, enforcing the fully integrated architectural lighting concept. A range of light refining accessories are available to guarantee optimal optic performance and maximum eye comfort. The outside of the Spy modules is available either black or white, which can be combined with exchangeable inserts in black, white, mat gold or a new silver grey finish.
